5-4 Head

5-4-1 Cut plastic plate  with ” template for circle”
写真7-57 テンプレートにプラバンを固定してカットする

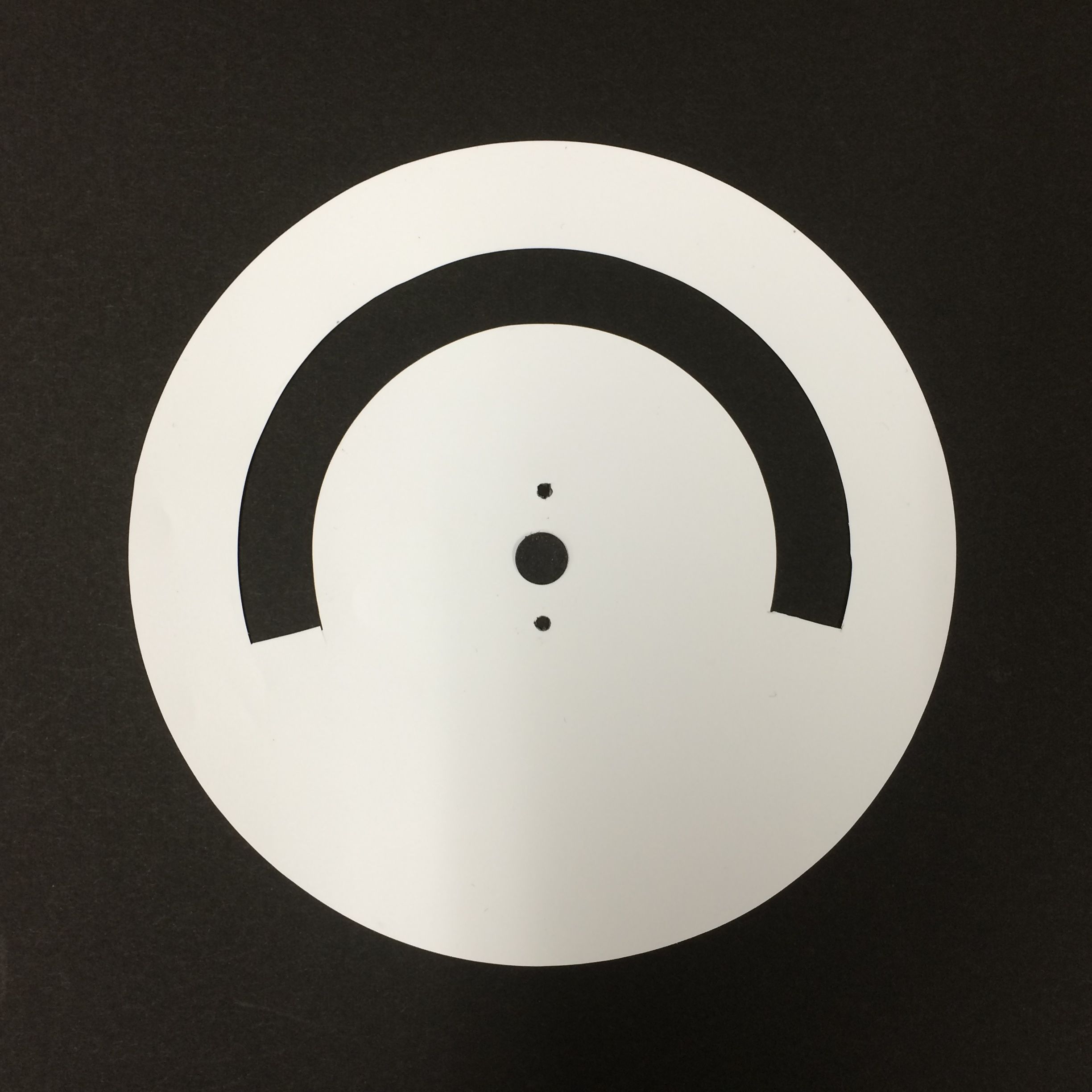

写真7-58 完成した円板

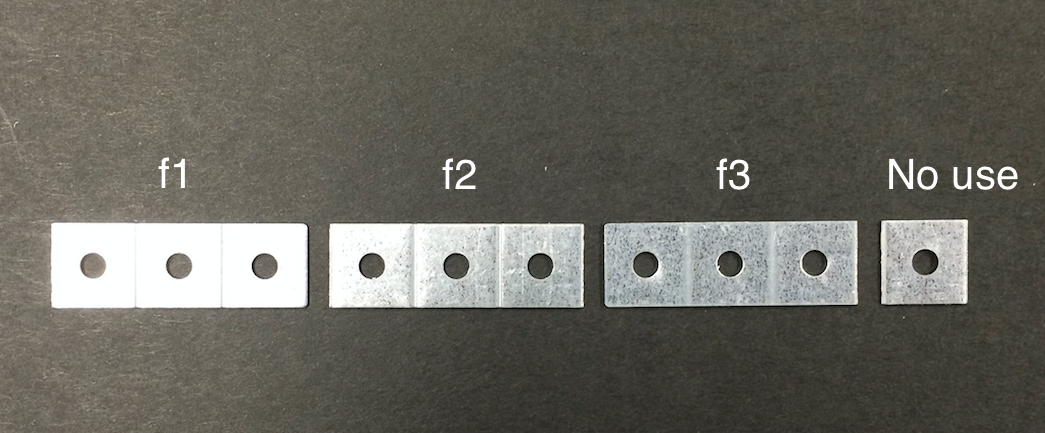

5-4-2 Divide TAMIYA Universal Metal Joint Parts into 4
スクリーンショット 2016-08-19 15.59.04

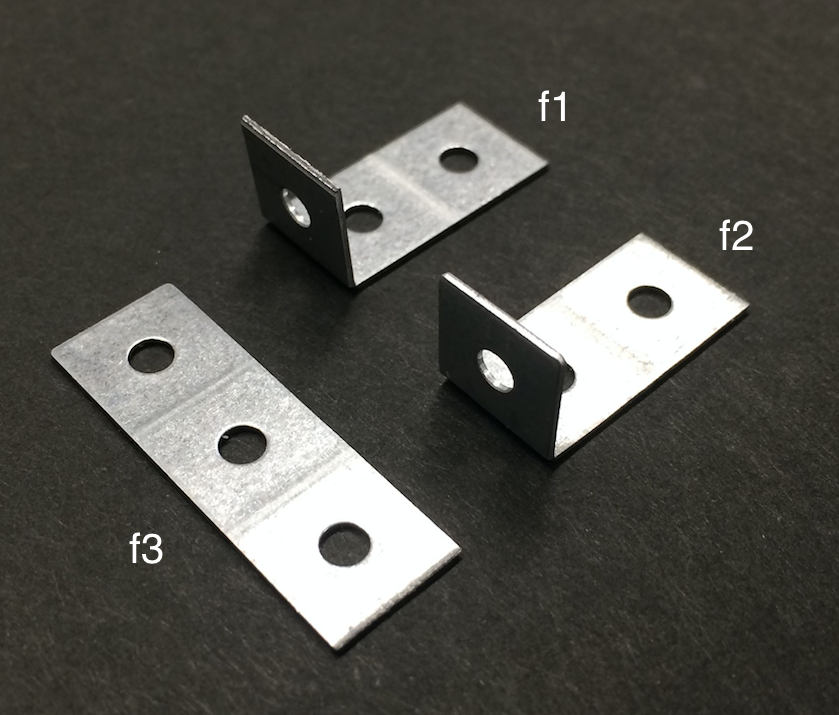

5-4-3 Bend “f-1″,”f-2” with Needle-nose pliers

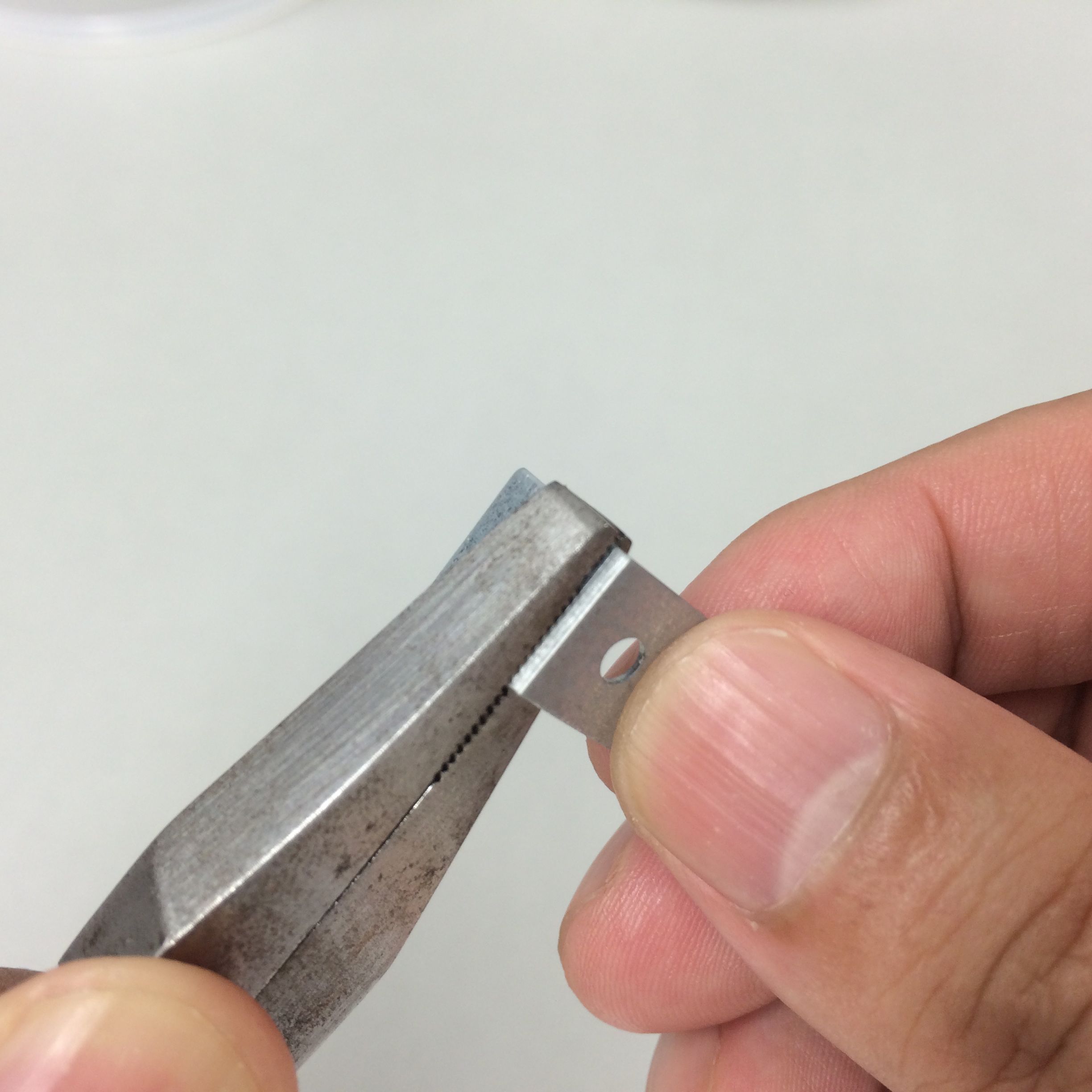

写真7-60 ラジオペンチで折り曲げる

スクリーンショット 2016-08-19 16.00.19

5-4-4  Drill 2  “M3″holes  in the servo horn

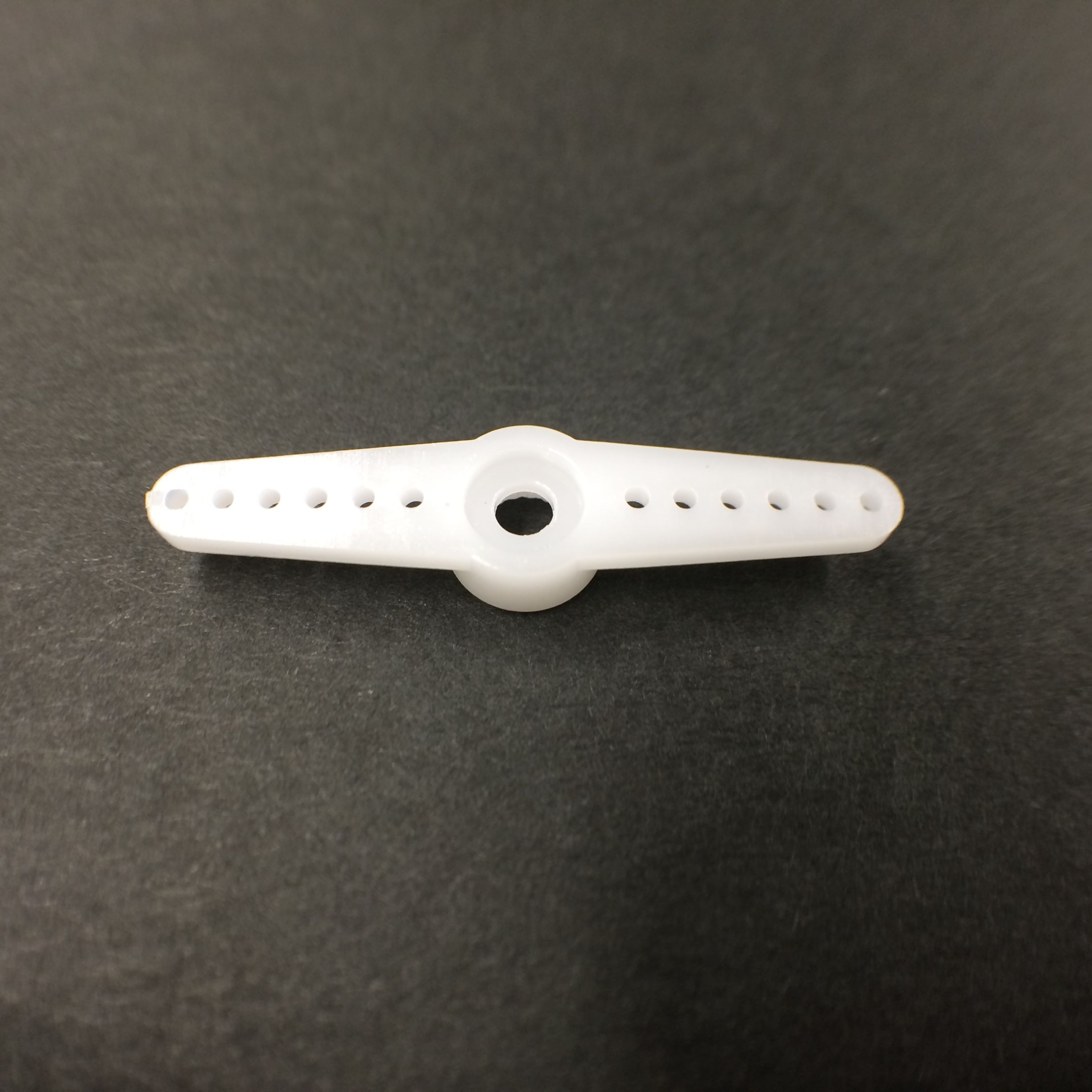

写真7-62 サーボホーン

5-4-5 Set “f-3” as a template and screw at the servo horn and drill it
写真7-63
写真7-64 完成した穴の開いたサーボホーンh1



5-4-6 Built and screw the cut circle, drilled servo horn, “f-1″,”f-2″,”f-3”

スクリーンショット 2016-08-19 16.16.46

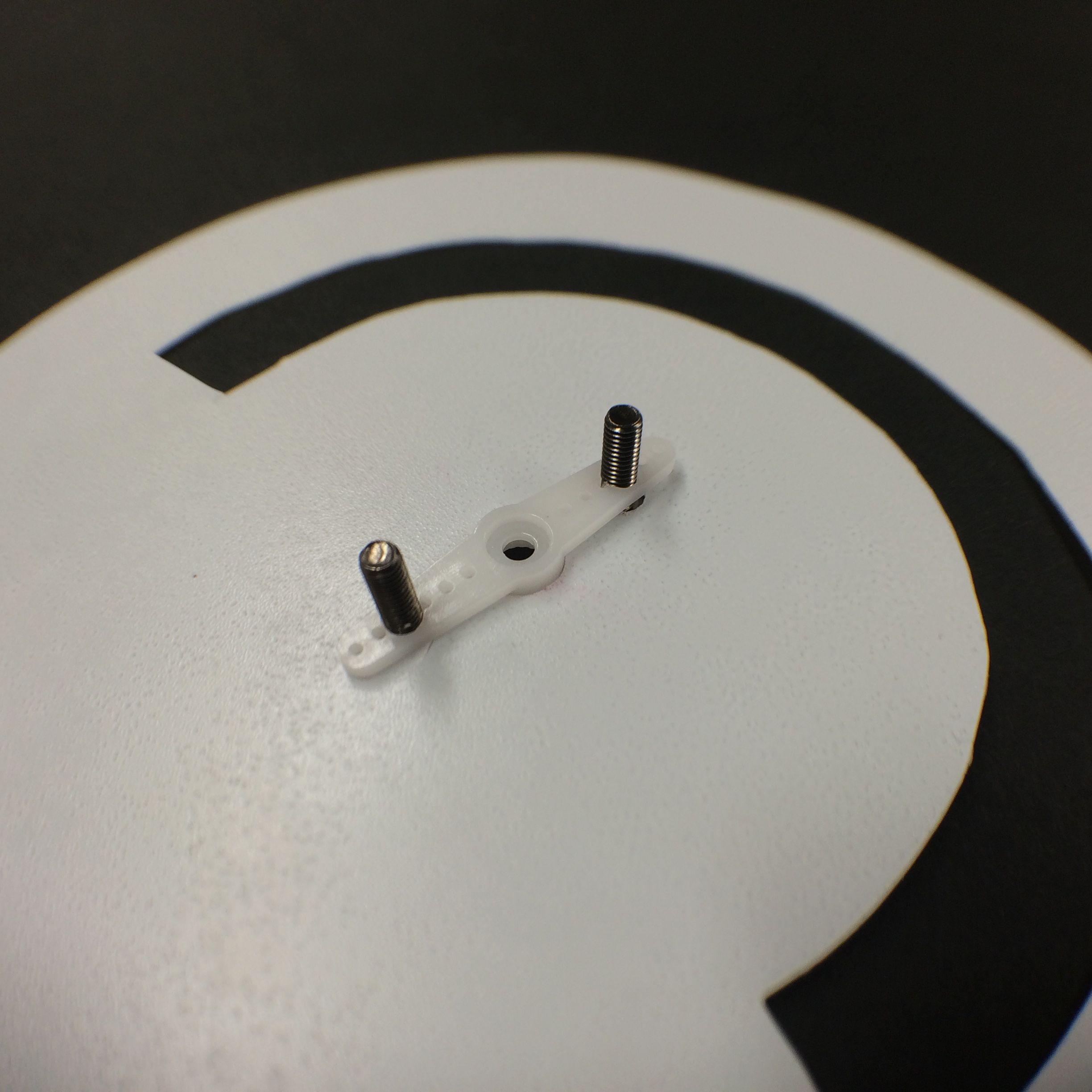

写真7-65 円板、サーボホーンh1、ネジを取り付ける

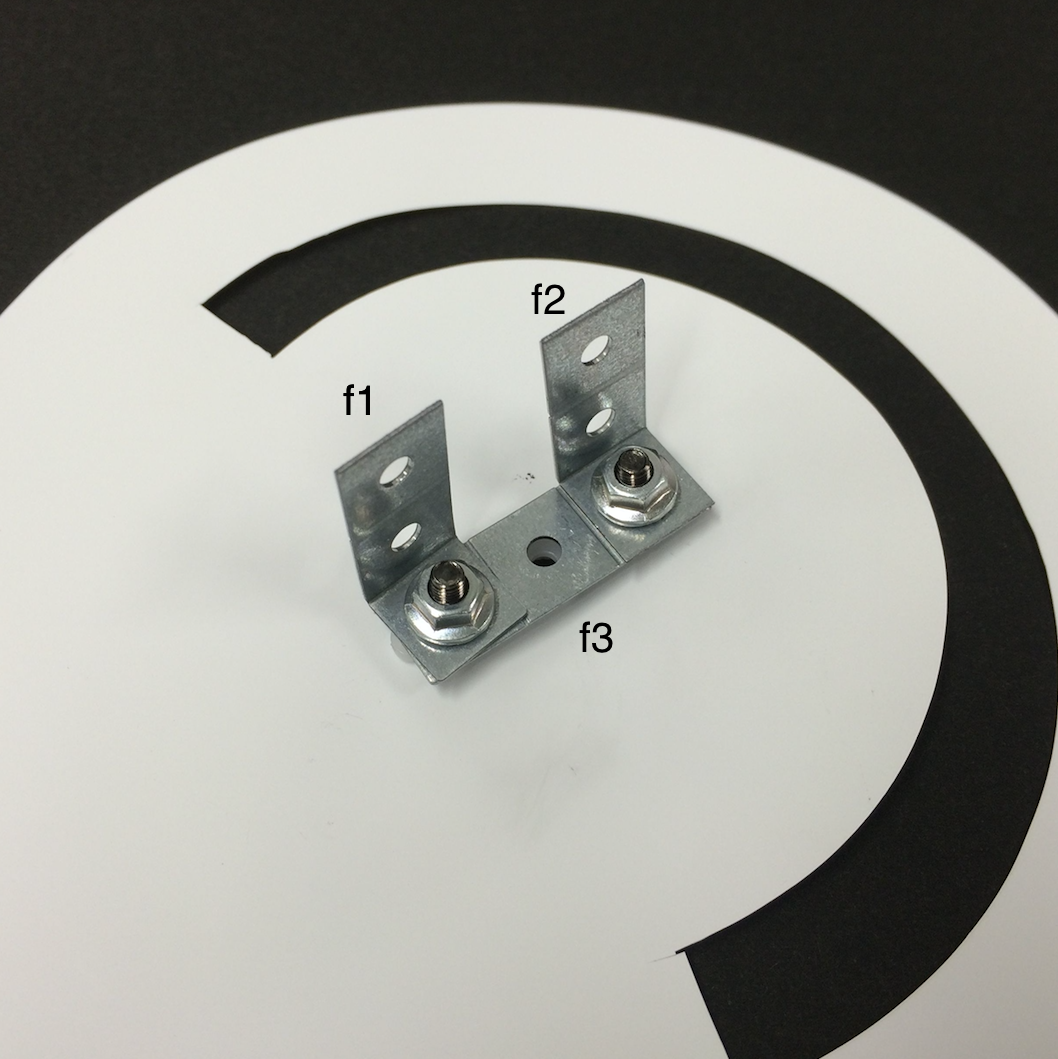

スクリーンショット 2016-08-19 16.19.40



写真7-67 円板を首のサーボに取り付ける

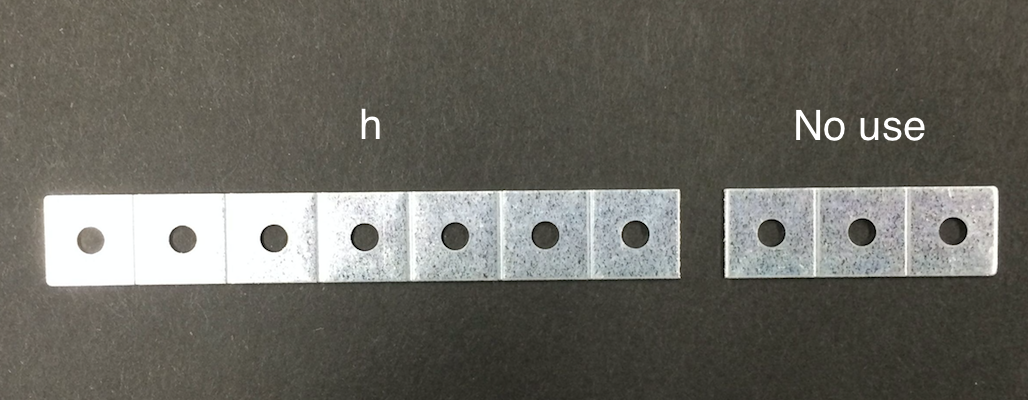

5-4-7 Cut and divide other metal palate into 2
スクリーンショット 2016-08-19 16.01.35

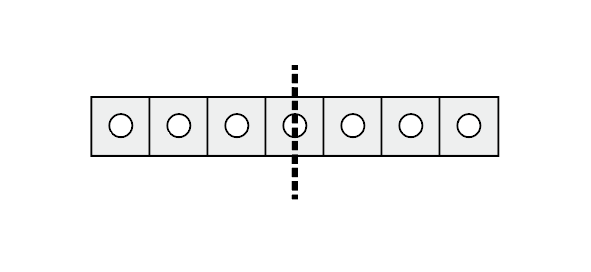

5-4-8 Bend “h” Bend to 90 degrees at the center
スクリーンショット 2016-08-19 16.17.19

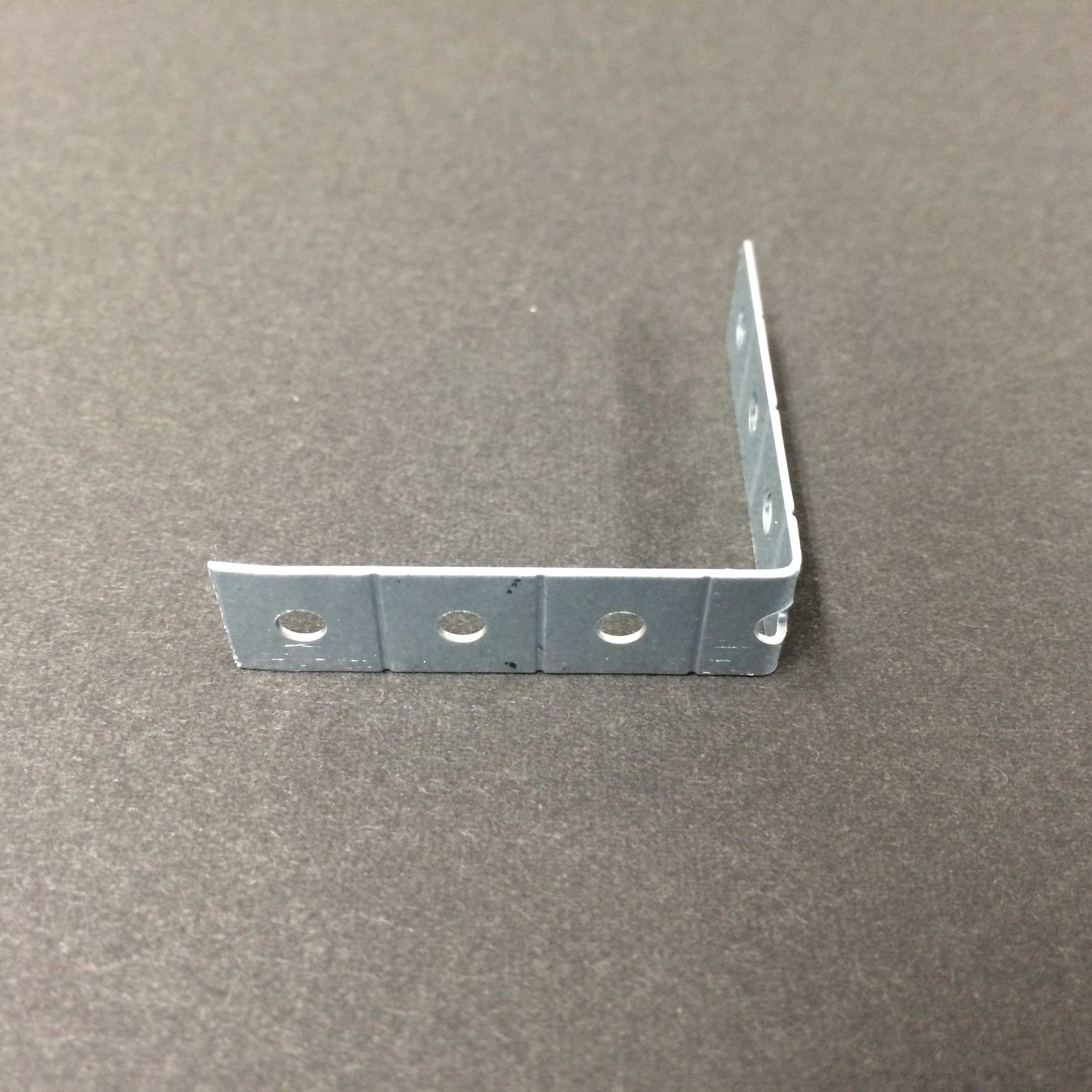

写真7-69 ユニバーサル金具の折り曲げ



5-4-9 Drill one hole in other small servo horn

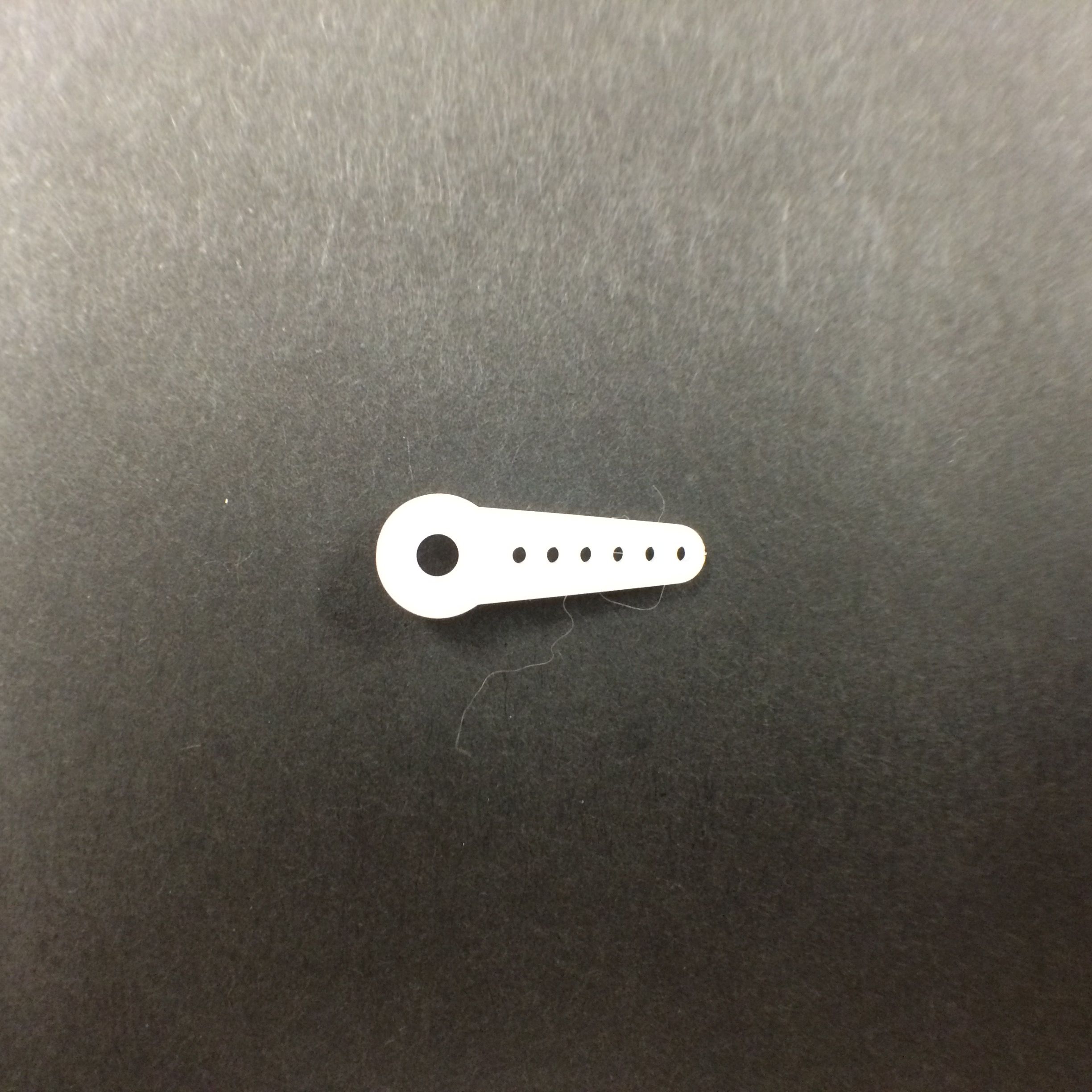

写真7-70サーボホーンh2

5-4-10  Set “h” as a template and screw at the servo horn and drill it

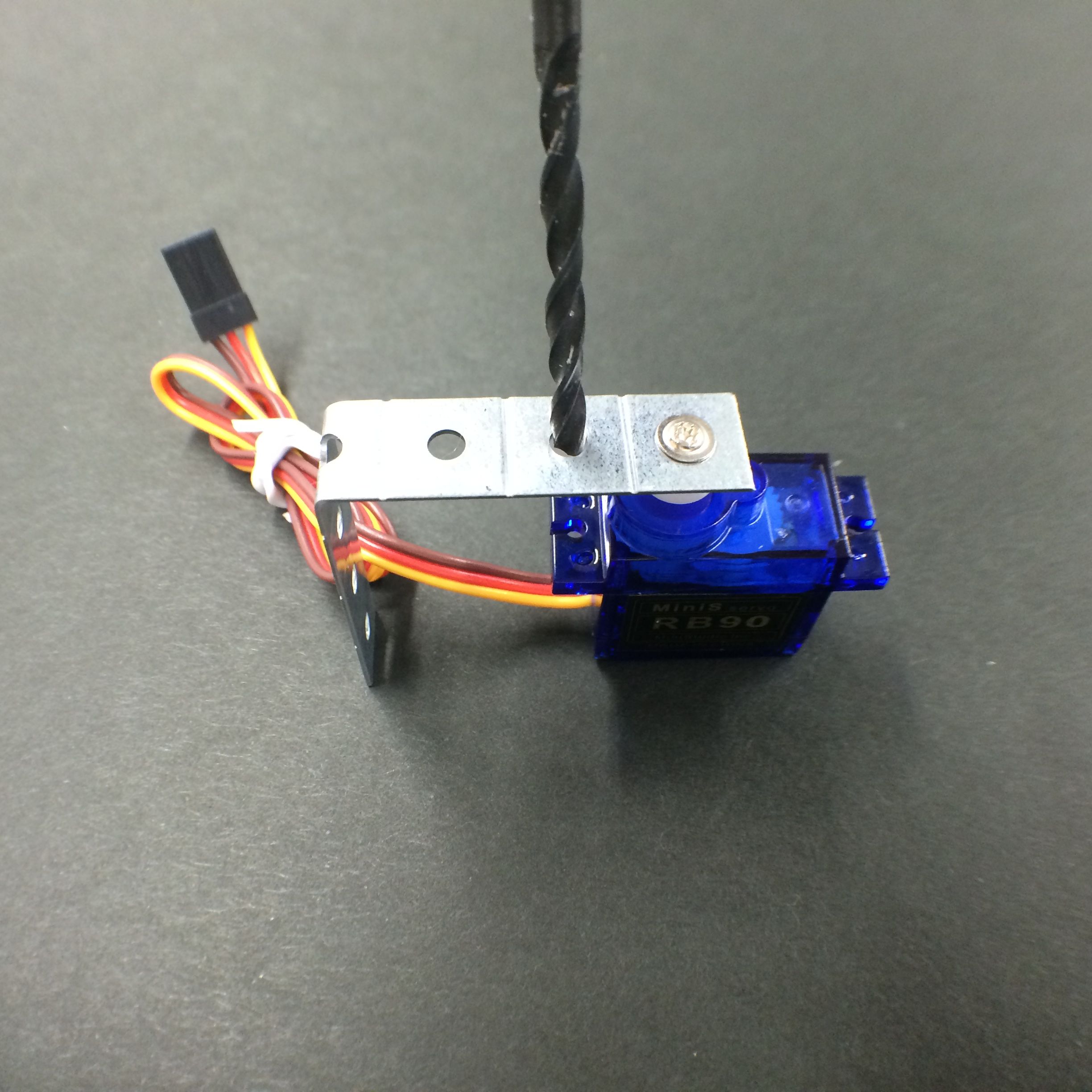

写真7-71サーボホーンh2の穴あけ

写真7-72完成した穴の開いたサーボホーンh2

5-4-11 Set “h” and cut small servo horn with screw

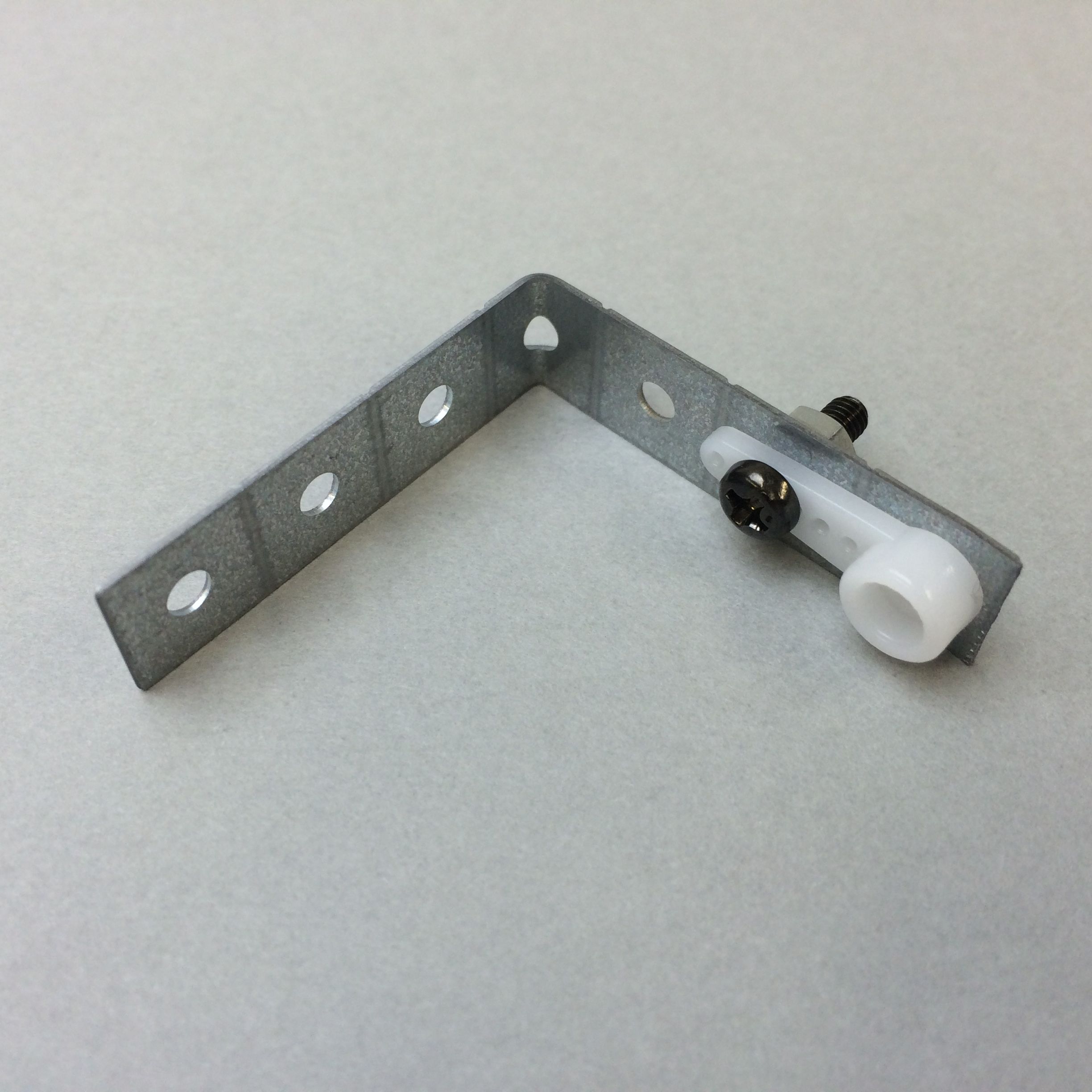

写真7-73アームにサーボホーンh2を取り付ける

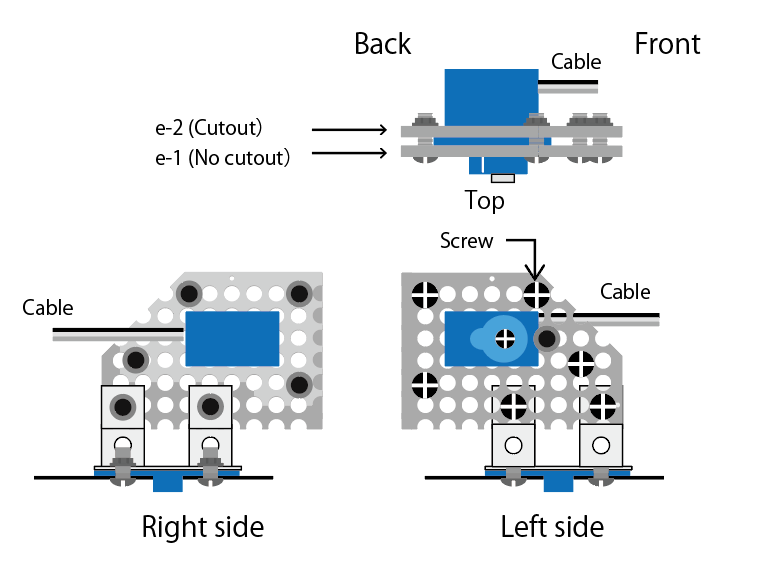

5-4-12 Set servo,”e-1″,”e-2″
スクリーンショット 2016-08-19 15.53.08

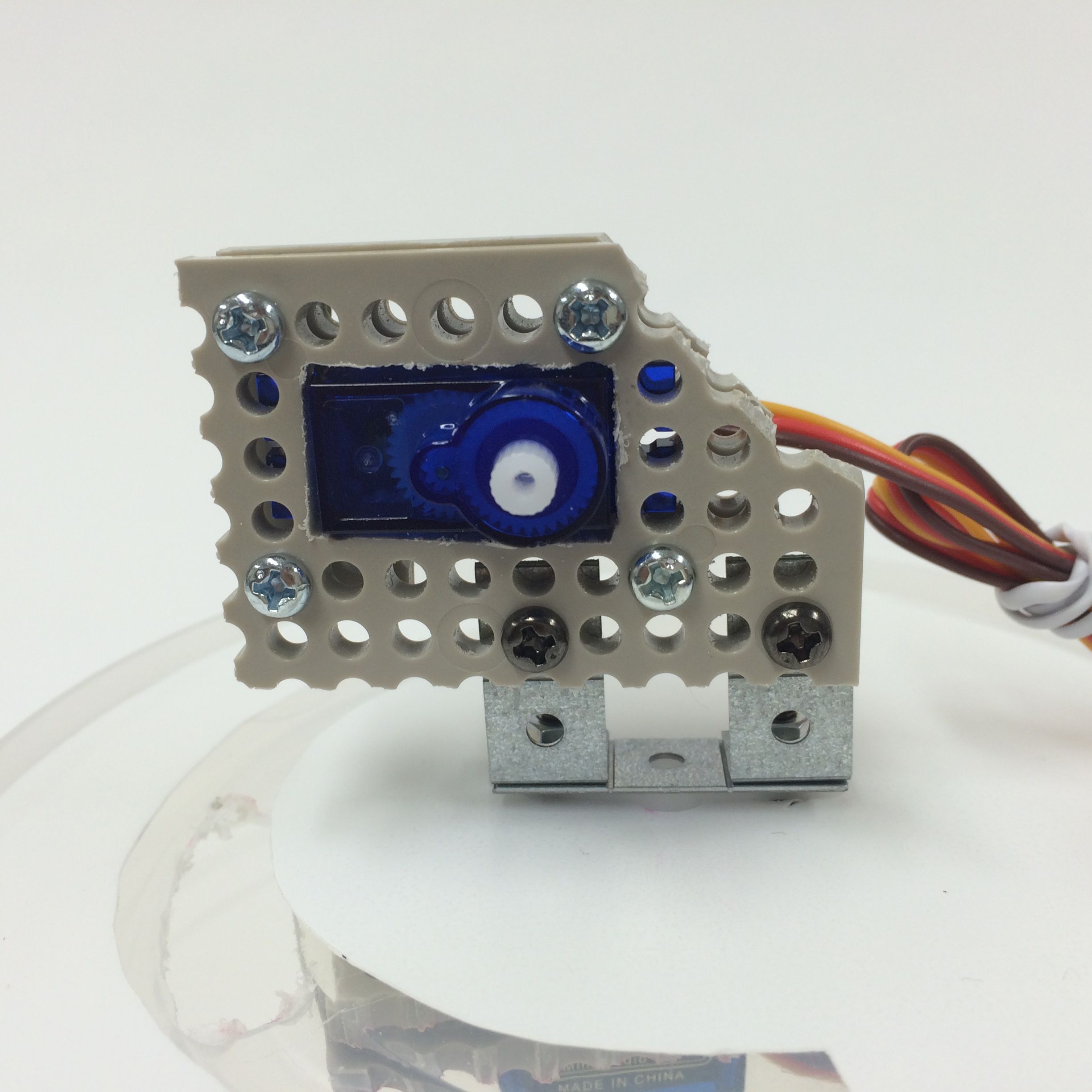

写真7-74目用サーボの取り付け 左側面から

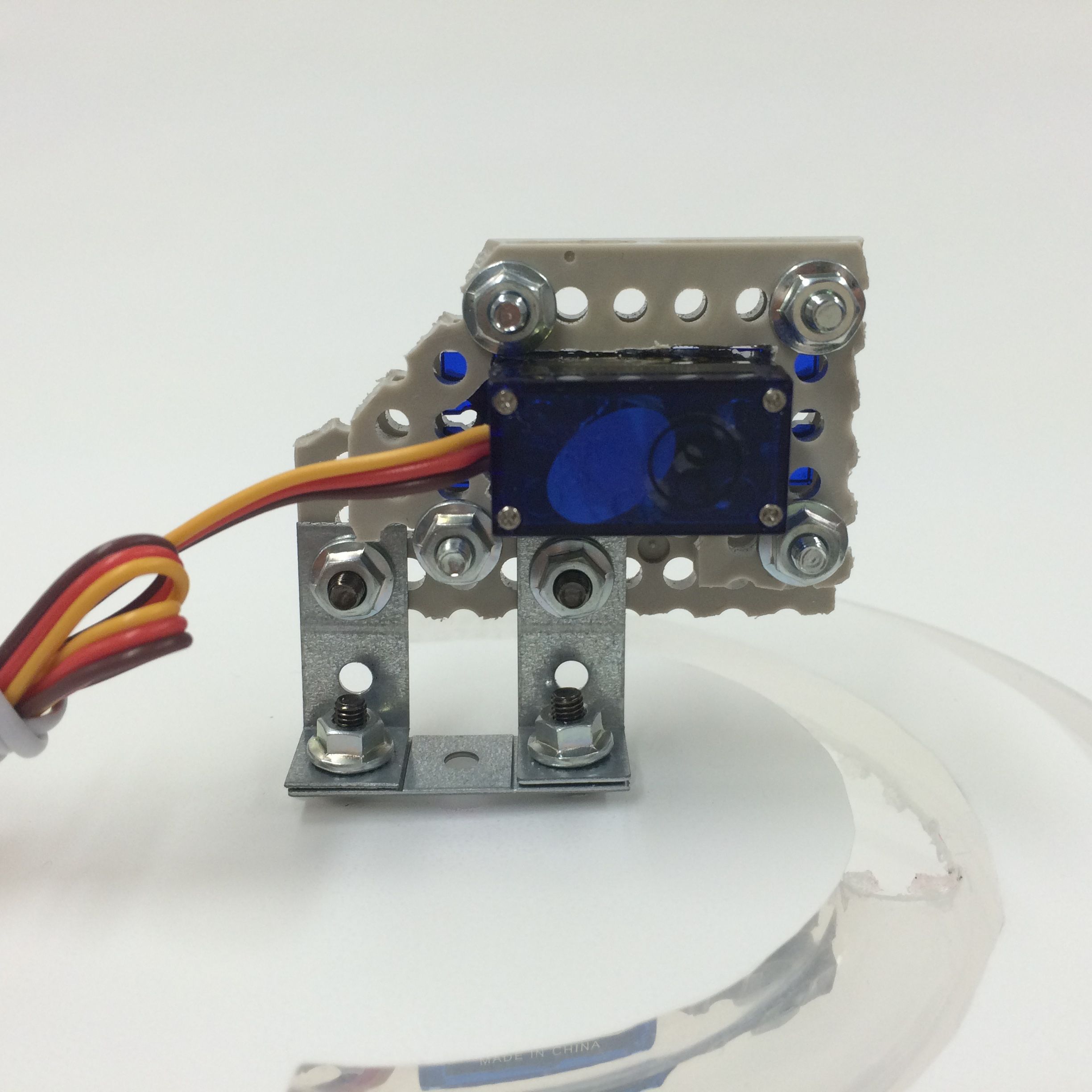

写真7-75目用サーボの取り付け 右側面から

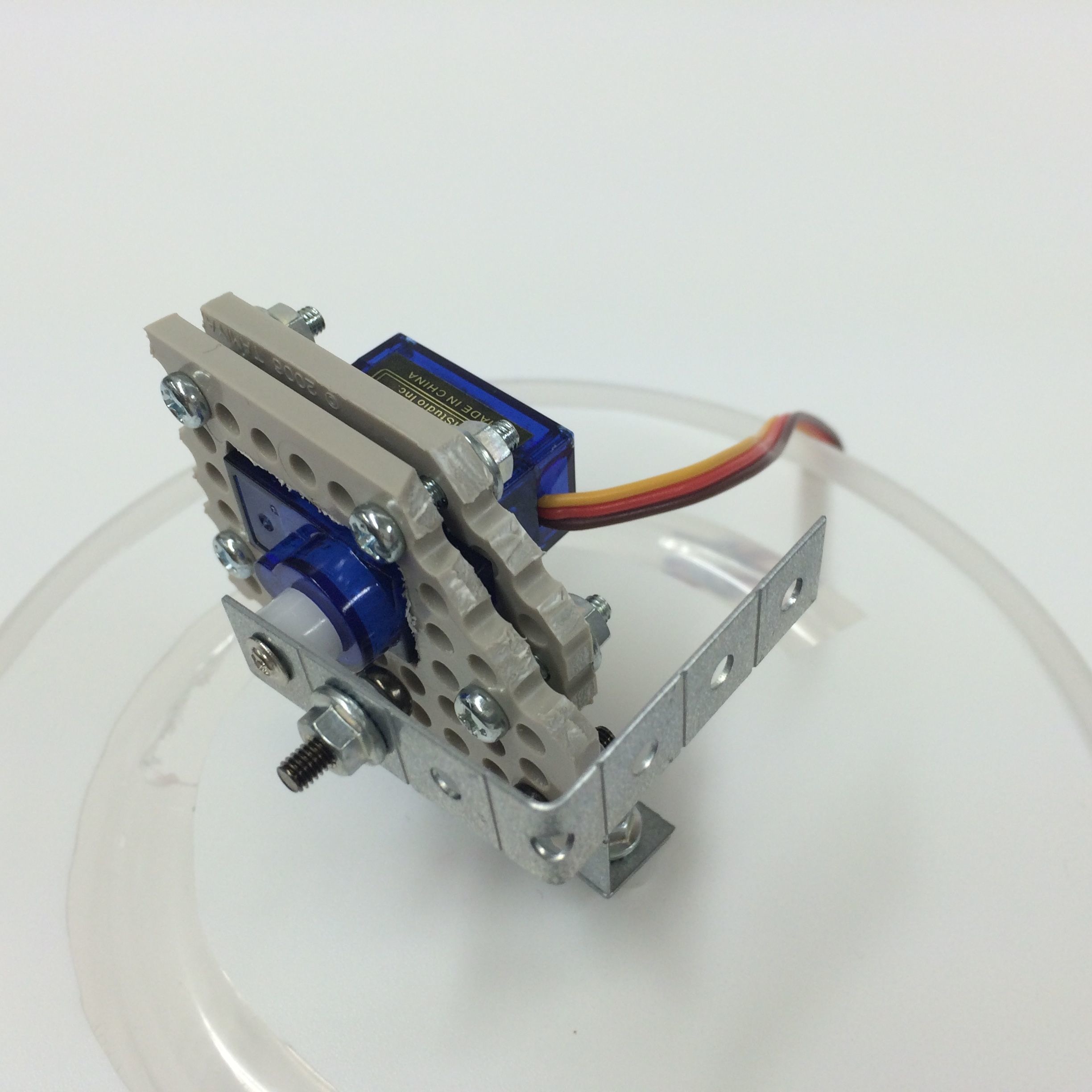

写真7-76 完成したヘッド
