List of Materials for 1 Mugbot 08/2017

We need tobuy and collectr Mugbot’s materials by oneself.
Like to get most of the materials all over the world from Web shop.

if you visit Japan, like to buy “Mugbot materials kit” at “Sengoku Densho No2 building “　Akihabara.
Mugbot materials kit

(their photos and URL are at the end of a sentence)
Mugbot Book (Japanese, if any)

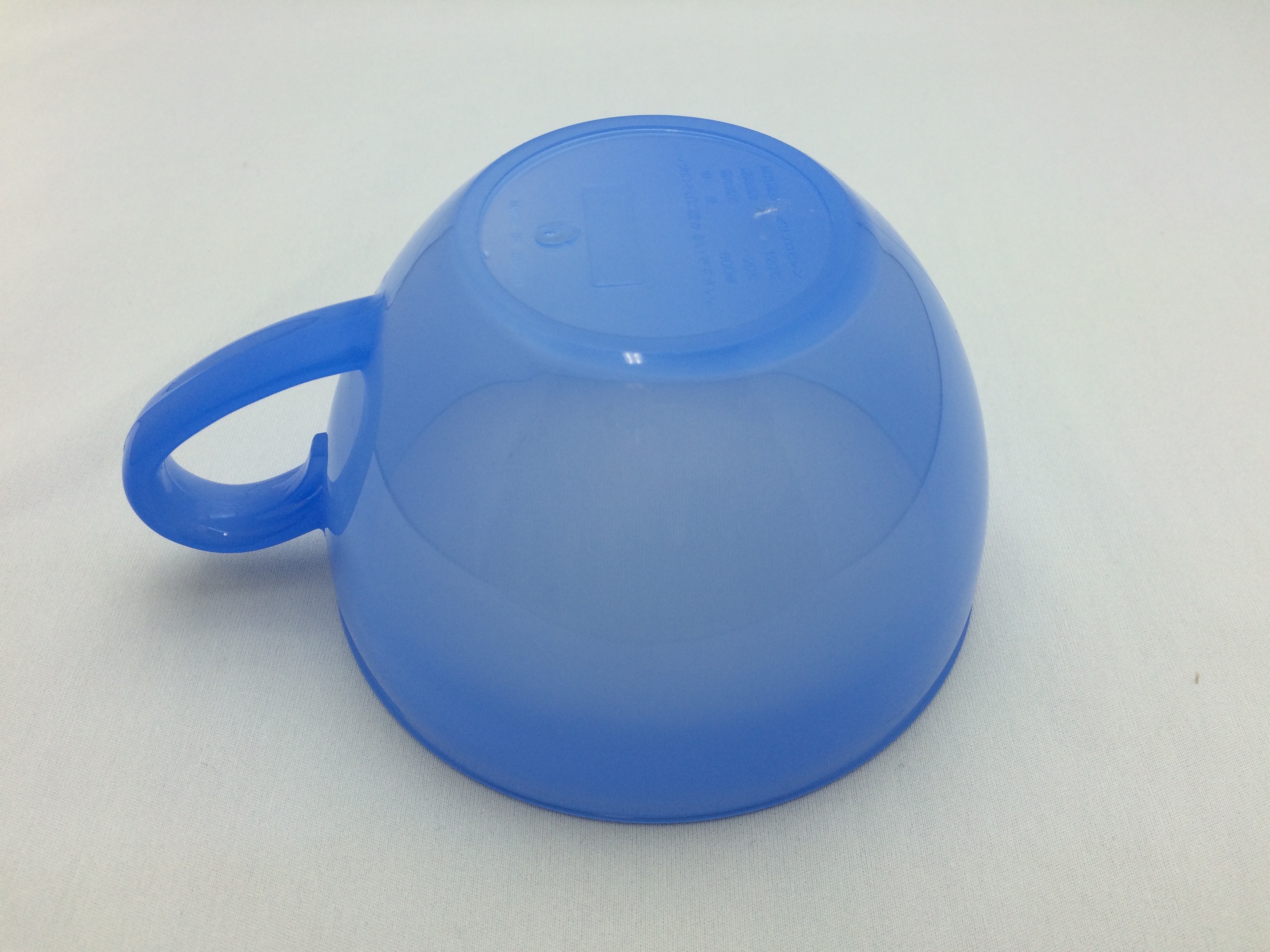

Plastic boul for Mugbot head 1pc
Plastic case for Mugbot body 1pc
Raspberry Pi (Raspberry Pi　B, B+ ,2 , 3 ) 1pc
USB AC Adapter for Raspberry Pi ( 2.5A for Raspberry Pi 3 or more) 1pc
Arduino Leanardo ( Duemilanove,Uno2 ,Uno3 ,Leonard or compatible Arduino) 1pc
Micro SD Card 8GB or more , Class 10 and Adaptor for Raspberry Pi 1pc
Small Servo Motor(RB90 or others) 2pcs
Mini Bread Board 1pc
Micro USB Cable( 150 mm or more adapted your Arduino type) 1pc
LAN cable (1000mm or more) 1pc

Jumper Wires
155mm long jumpers with male connectors on both ends 10pcs (11pc if you use Arduino without “IOREF” pin)

155mm long jumpers With male and female connectors 8pcs (14 pc if you use Arduino without “IOREF” pin)

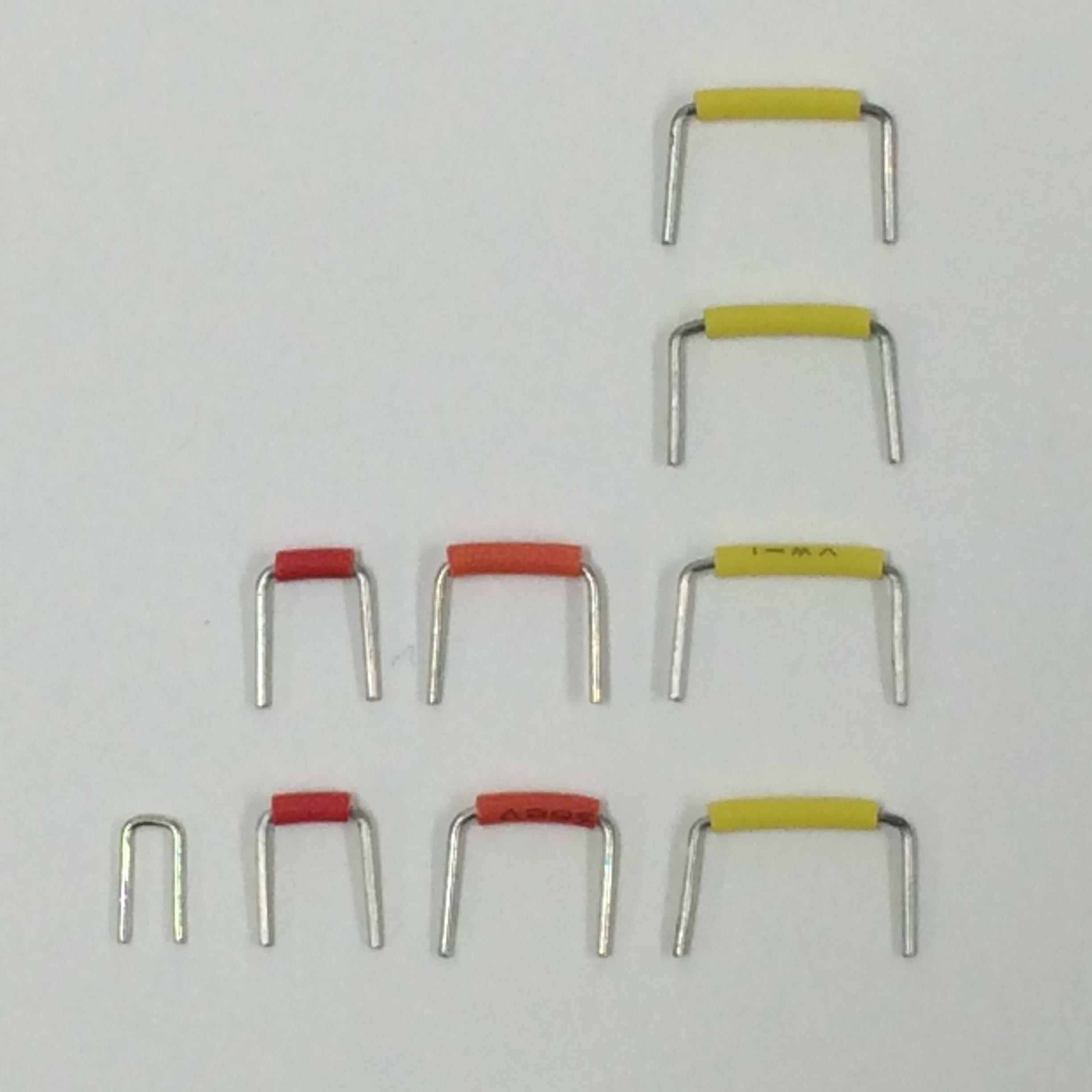

Prebented short jump wires 1 set

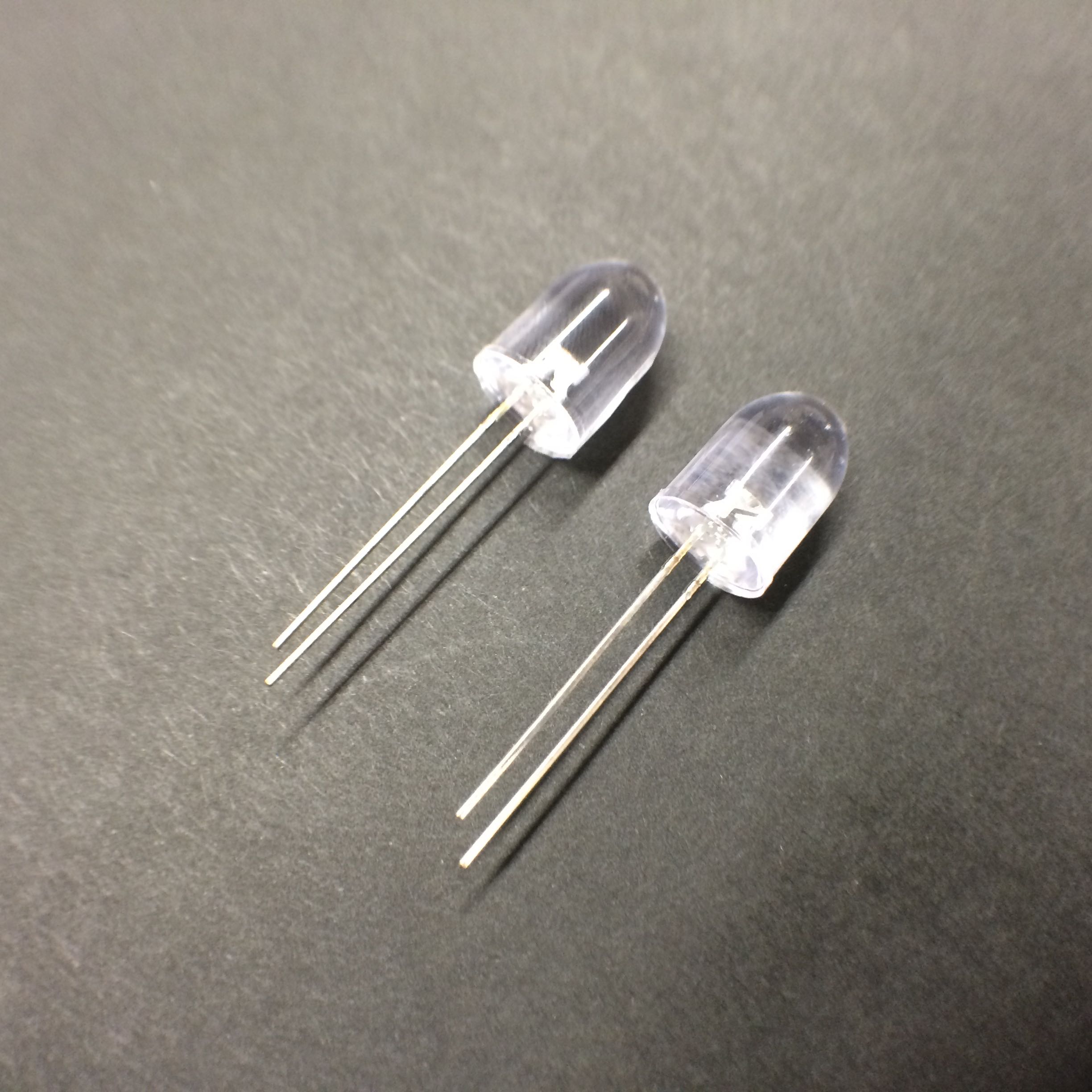

LED White 10mm 2pcs
LED White 5mm auto blink 3pcs

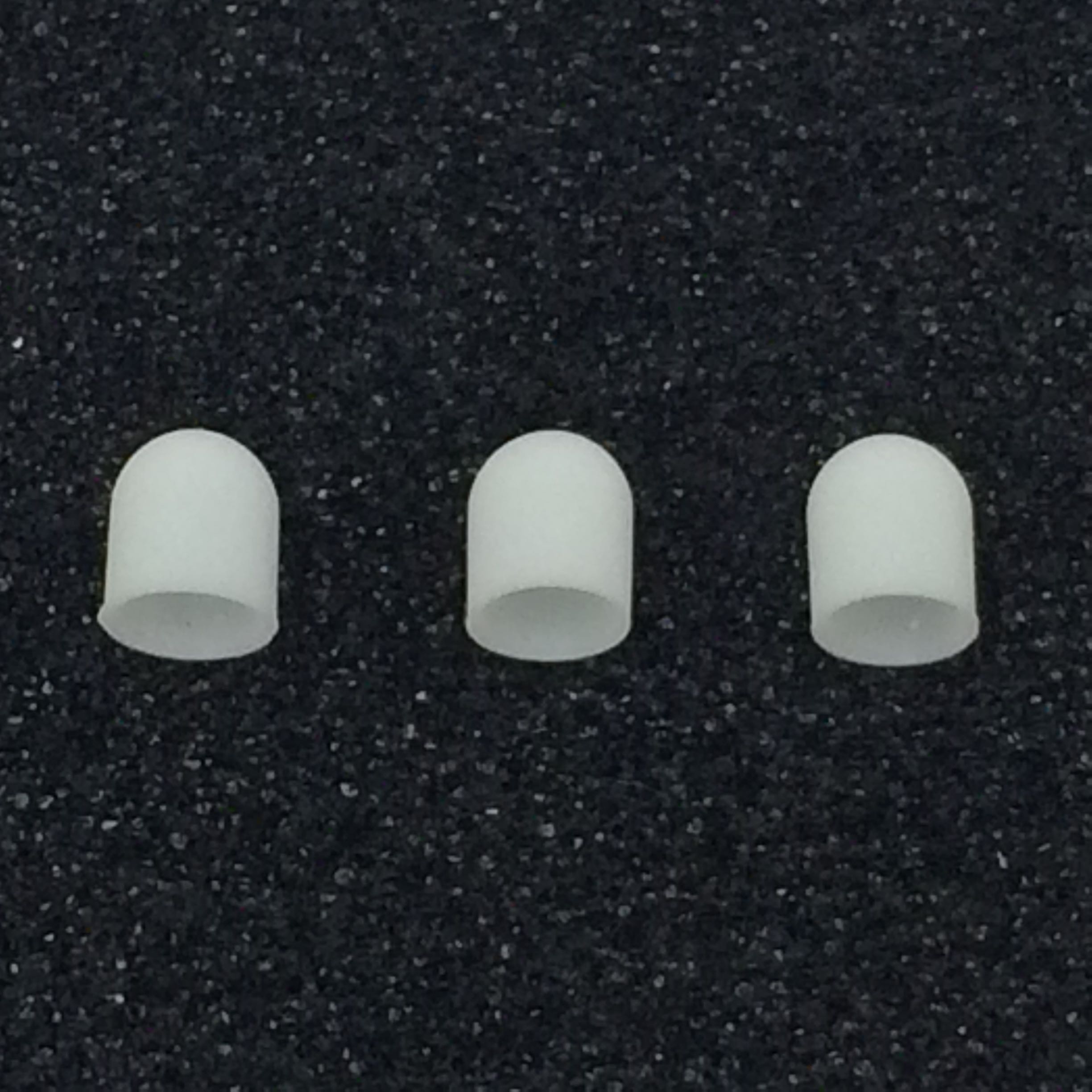

LED Cap for LED 5mm 3pcs

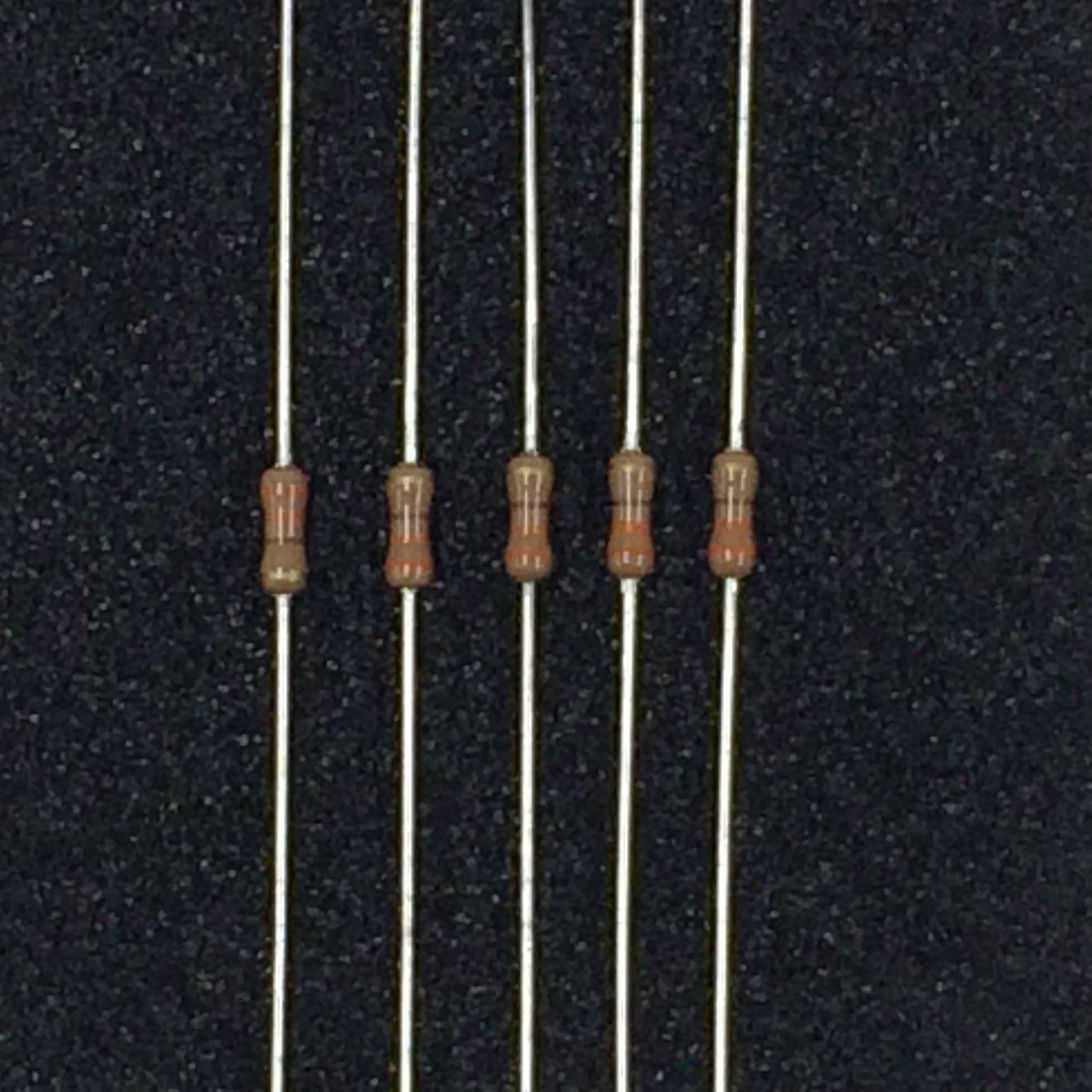

Register 330Ω(1/4w) 5pcs

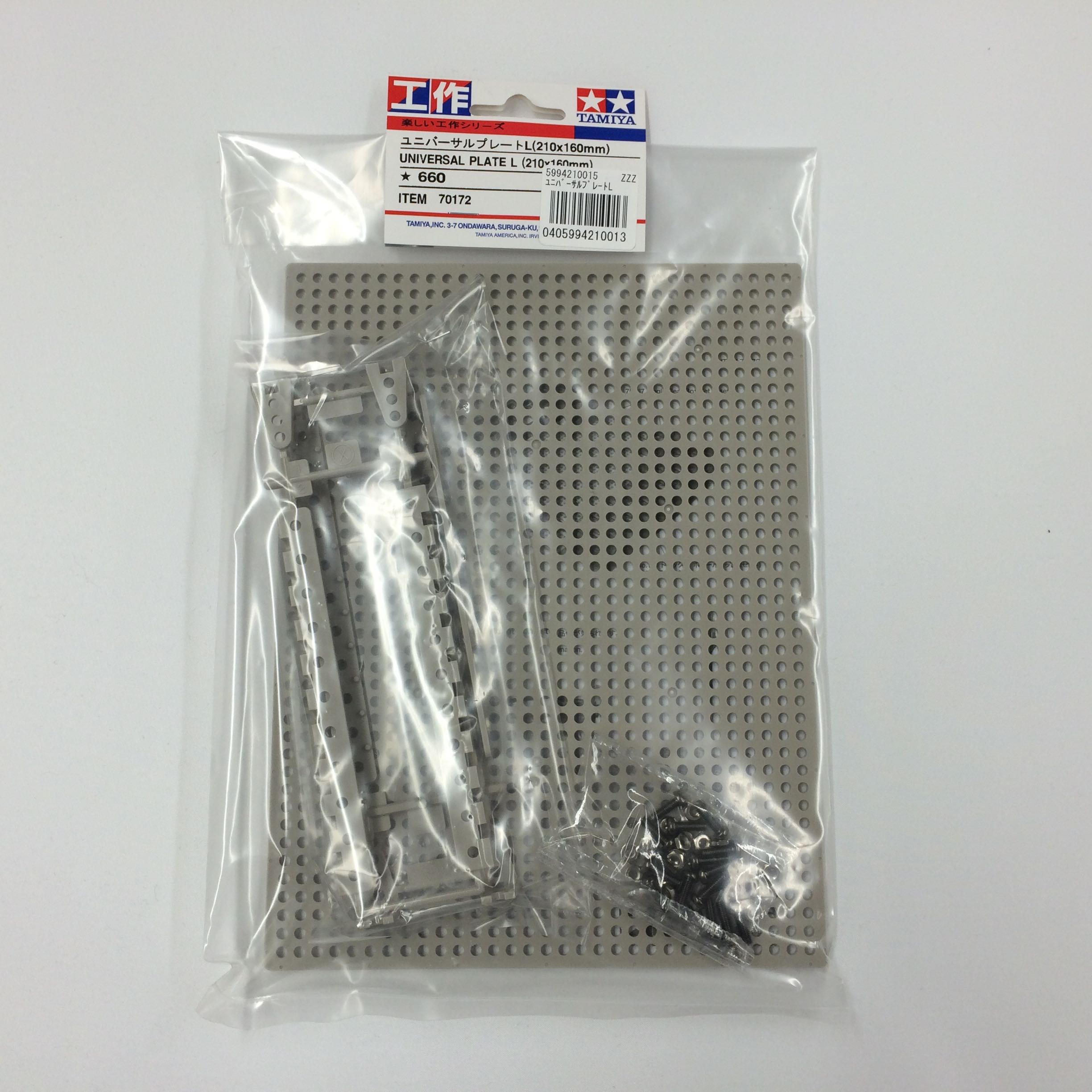

TAMIYA Universal Plate L(210x160mm) 1pc

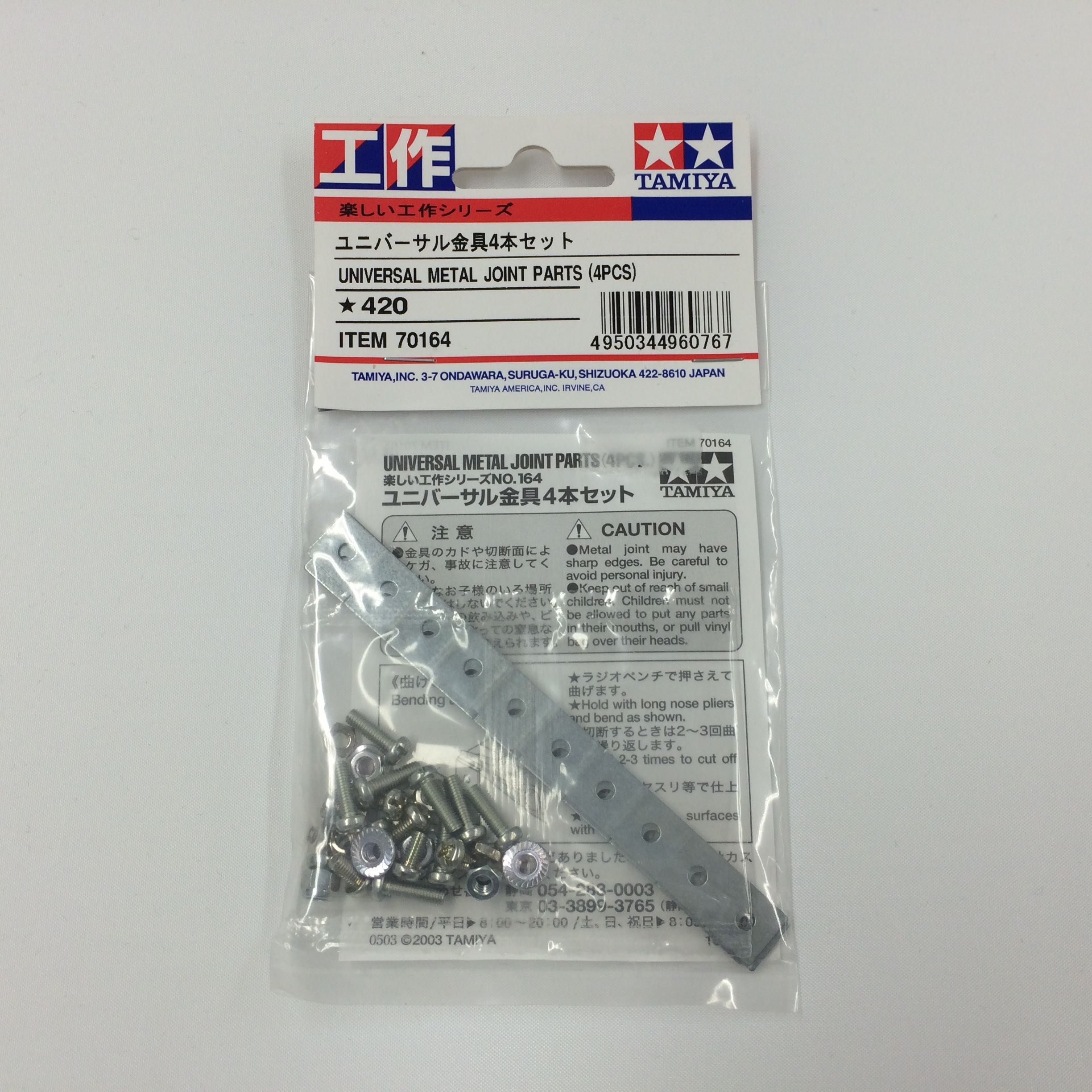

TAMIYA Universal Metal Joint Parts (4pcs.) 1pc

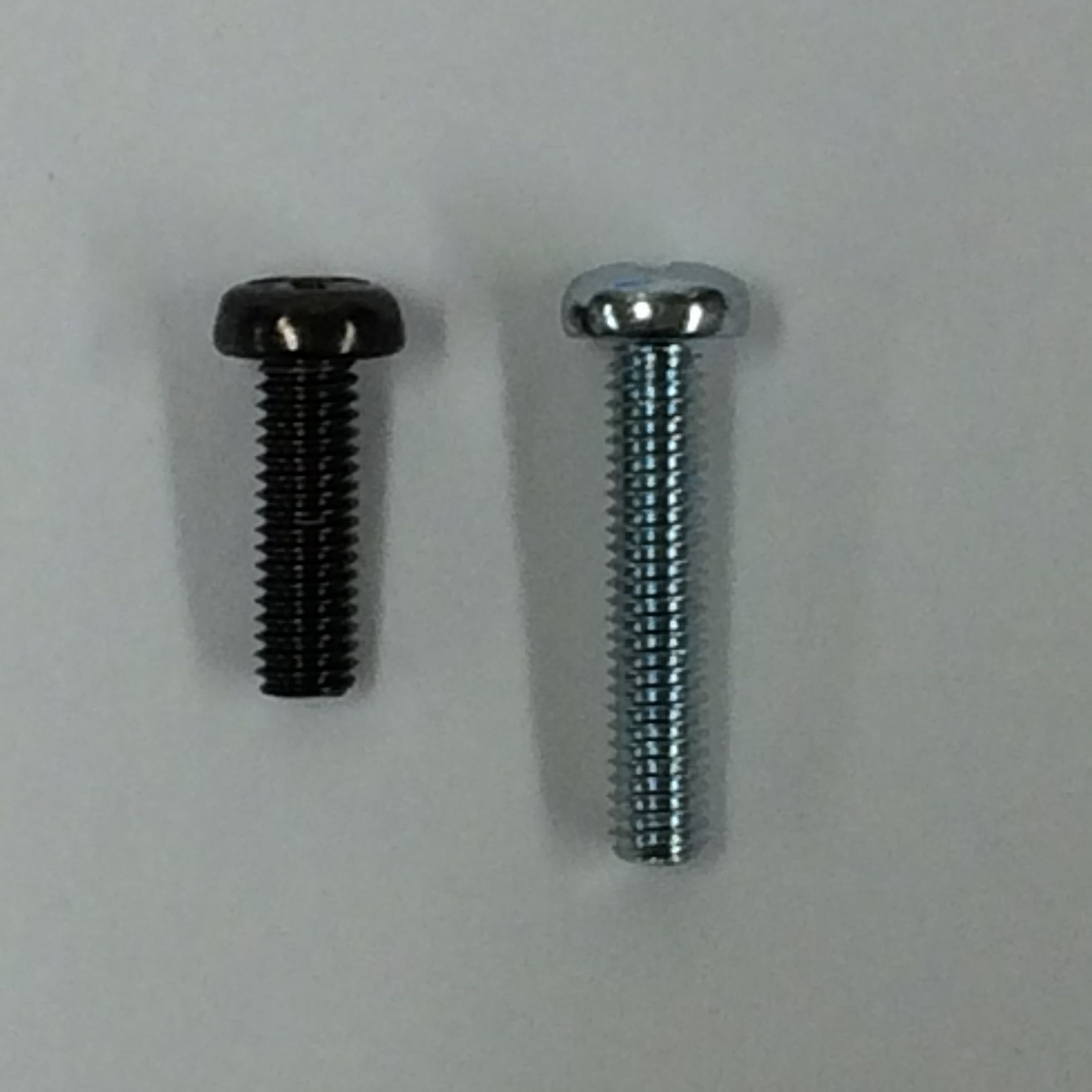

M3 15mm screw　　 10pcs
M3 10mm screw　 17pcs ( 18pcs screws are atattched with TAMIYA Universal Plate L)

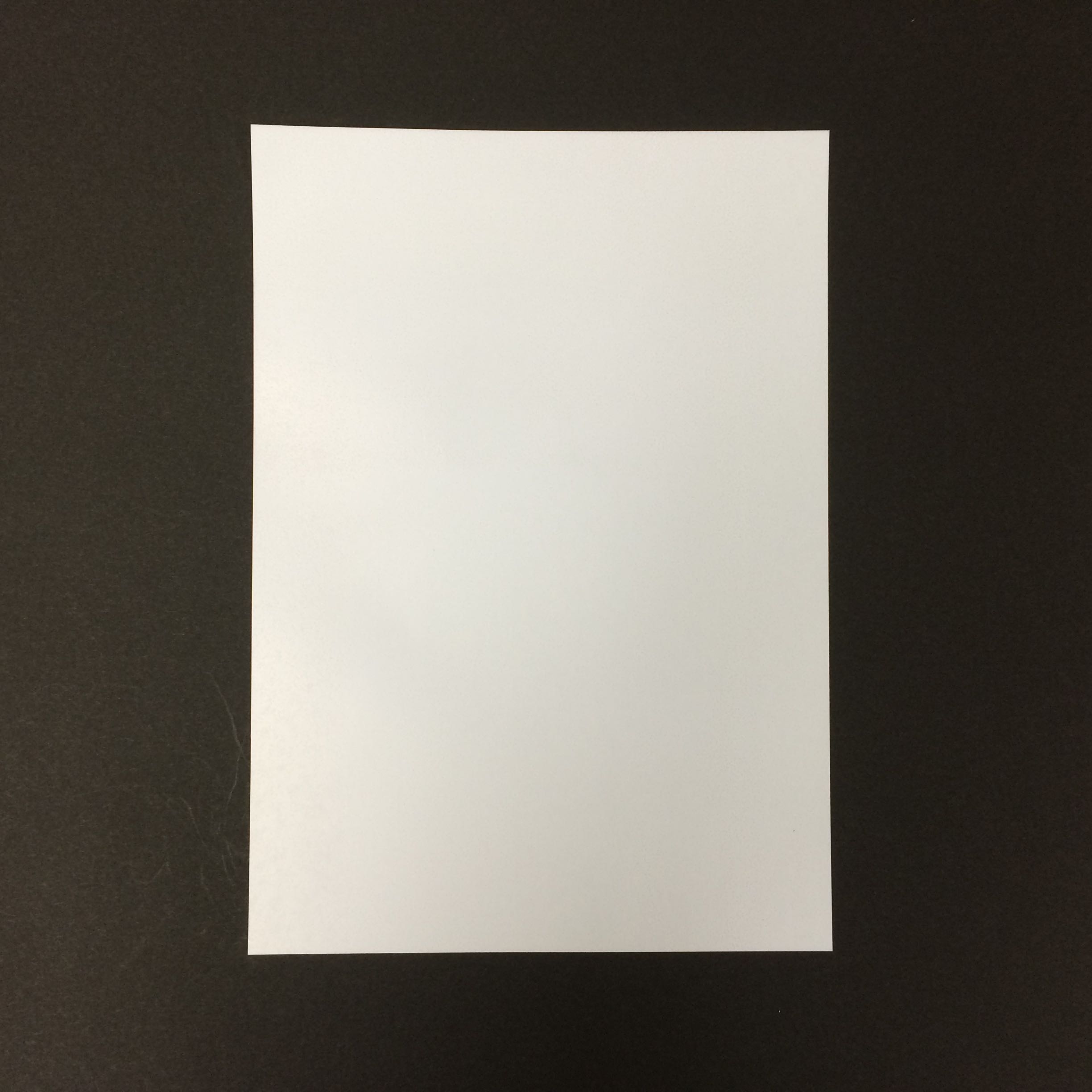

0.2mm or 0.3mm plastic sheet ( 126mm square or more ) 1pc
Speaker with amplifier and 3.5mm Audio cable 1pc

If any

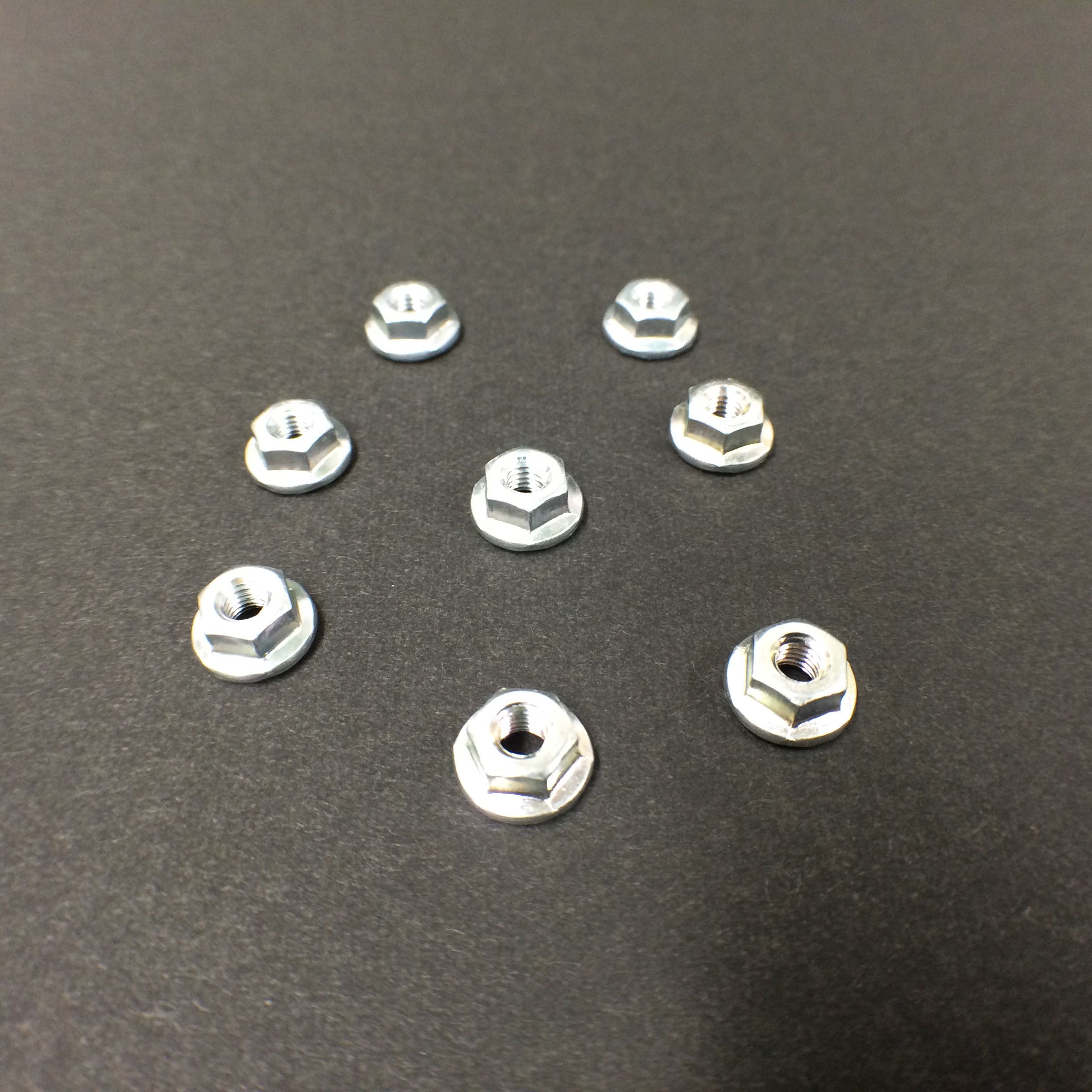

Hexagon nut with flange 27pcs (our favorite)

Mugbot Book
“Oshaberi Robot ‘Mugbot’ Ra Zupai to Arduino De Denshi Kosaku”
Koike Seita
You can know how to make Mugbot with the book
The book is written by Japanese. But I hope this will be of some help.
We hope that the book is published in English or several language.

cdJapan

Plastic PP Fruit Cream Color Mixture Bowls (4 colors) 1 piece

Plastic PP Fruit Cream Color Mixture Bowls Salad and Vegetables Containers Food Grade Kitchen Cooking Tools Bakeware

Japanese plastic body case “Naruhodo” Pack (dried food) 1 piece

It is a pack dried foods case Sanada delicate work indeed It is a pack dried foods case Sanada delicate work indeed

Raspberry Pi　3 1 piece

We use “Raspberry Pi　3” (8/2017)

Arduino Leonardo 1 piece

We use “Arduino Leonardo”. You can use other Ardino ( Duemilanove,Uno2 ,Uno3 ,Leonardo or compatible Arduino)

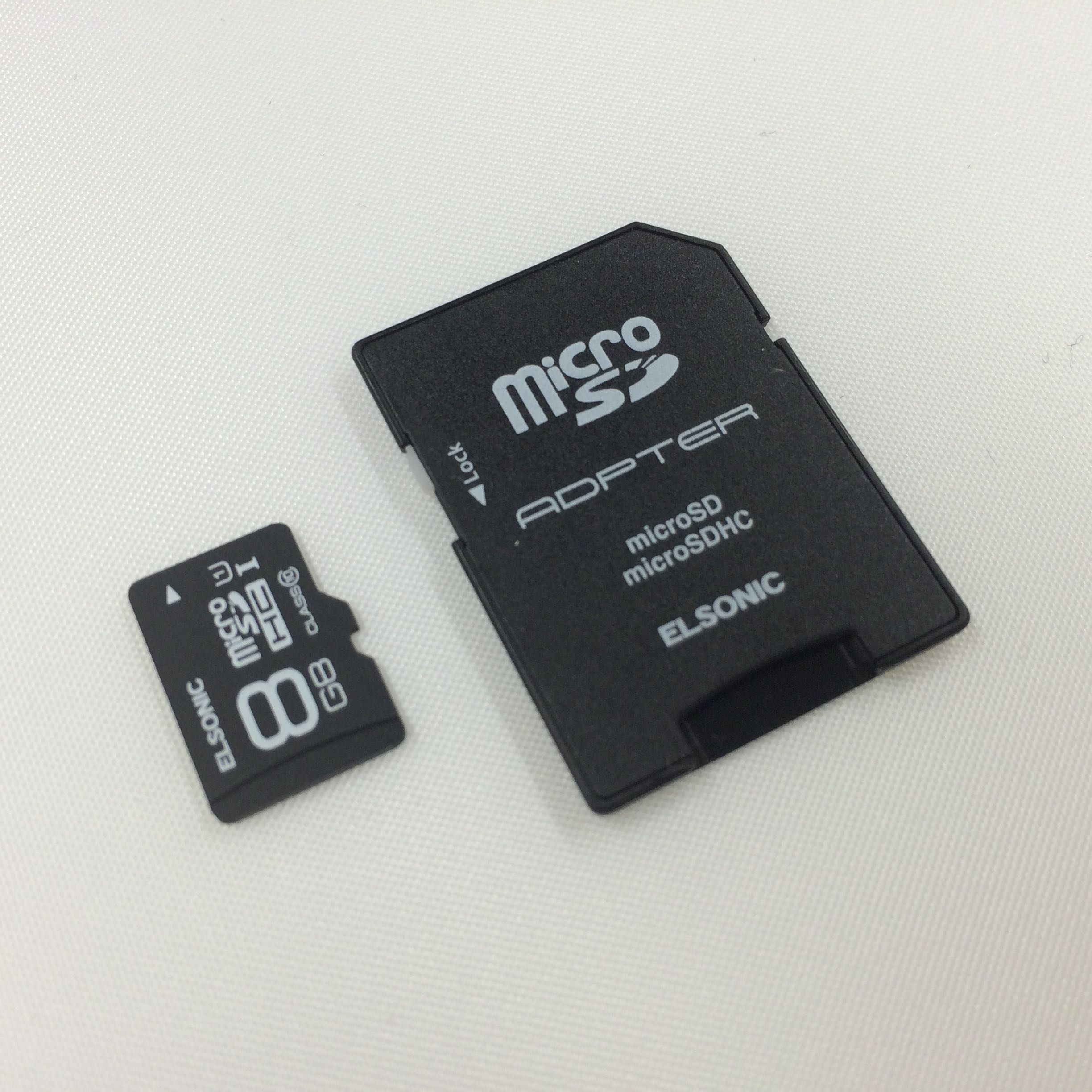

Micro SD Card 8GB or more , Class 10 and Adaptor 1 piece

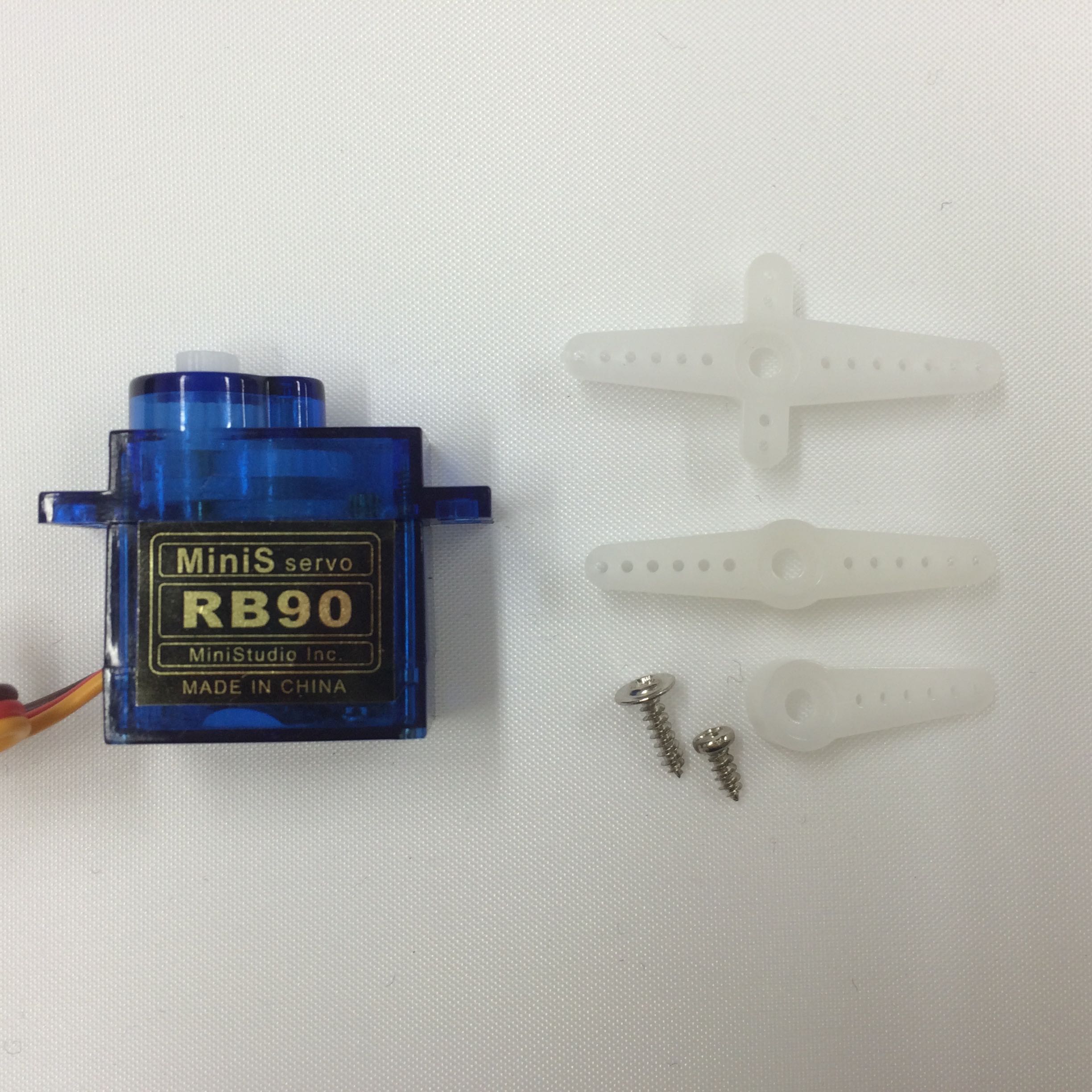

Mini Servo Motor(RB90 or others) 2 pieces

You can use other mini servo Motors.
You may use them (But we do not test them.)

Farnell element14
SparkFun
RobotShop
RobotShop
Pololu

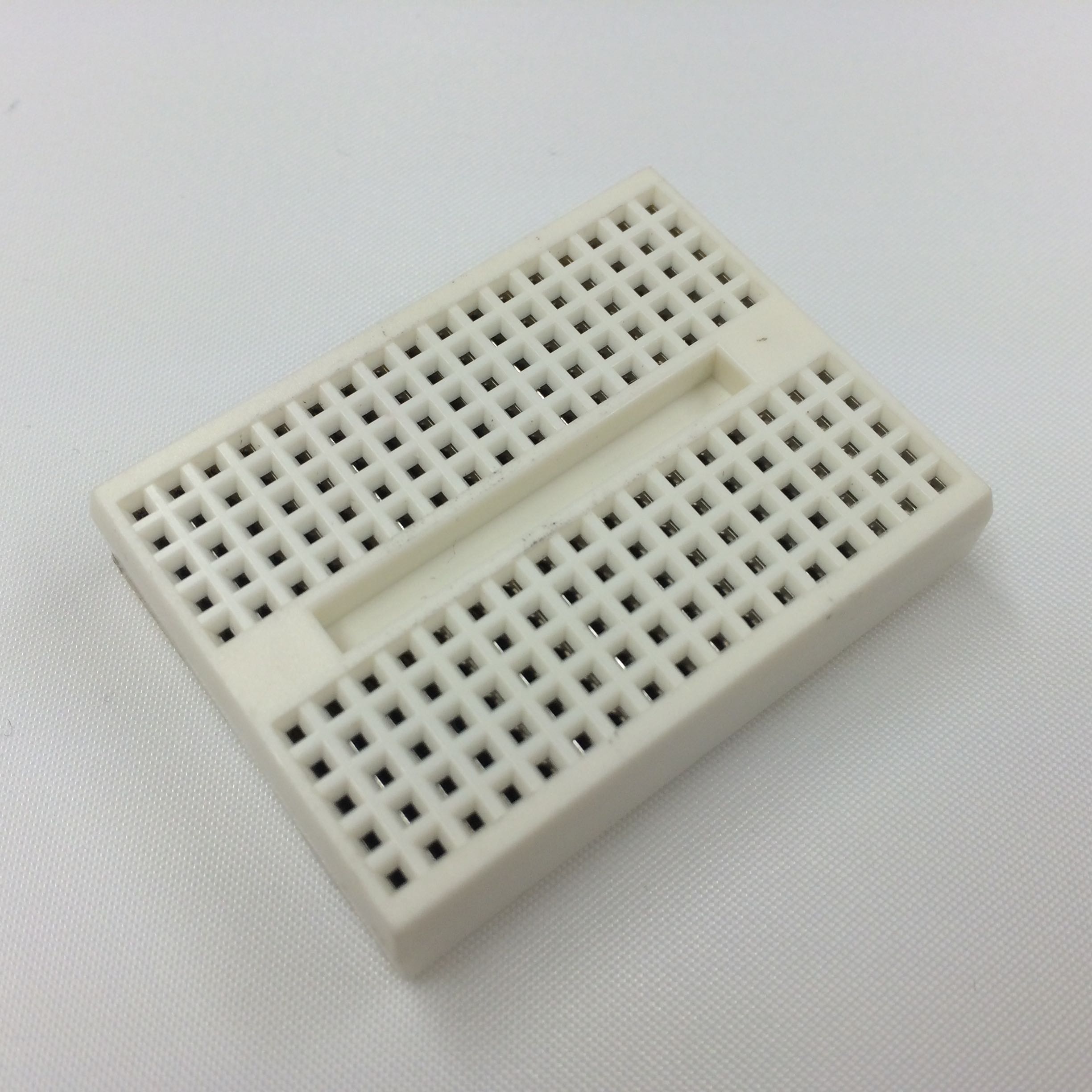

Mini Breadboard 1 piece

You may use them (But we do not test them.)

RobotShop
SparkFun
Pololu

USB AC Adapter for Raspberry Pi ( 2.5 A or more) 1 piece

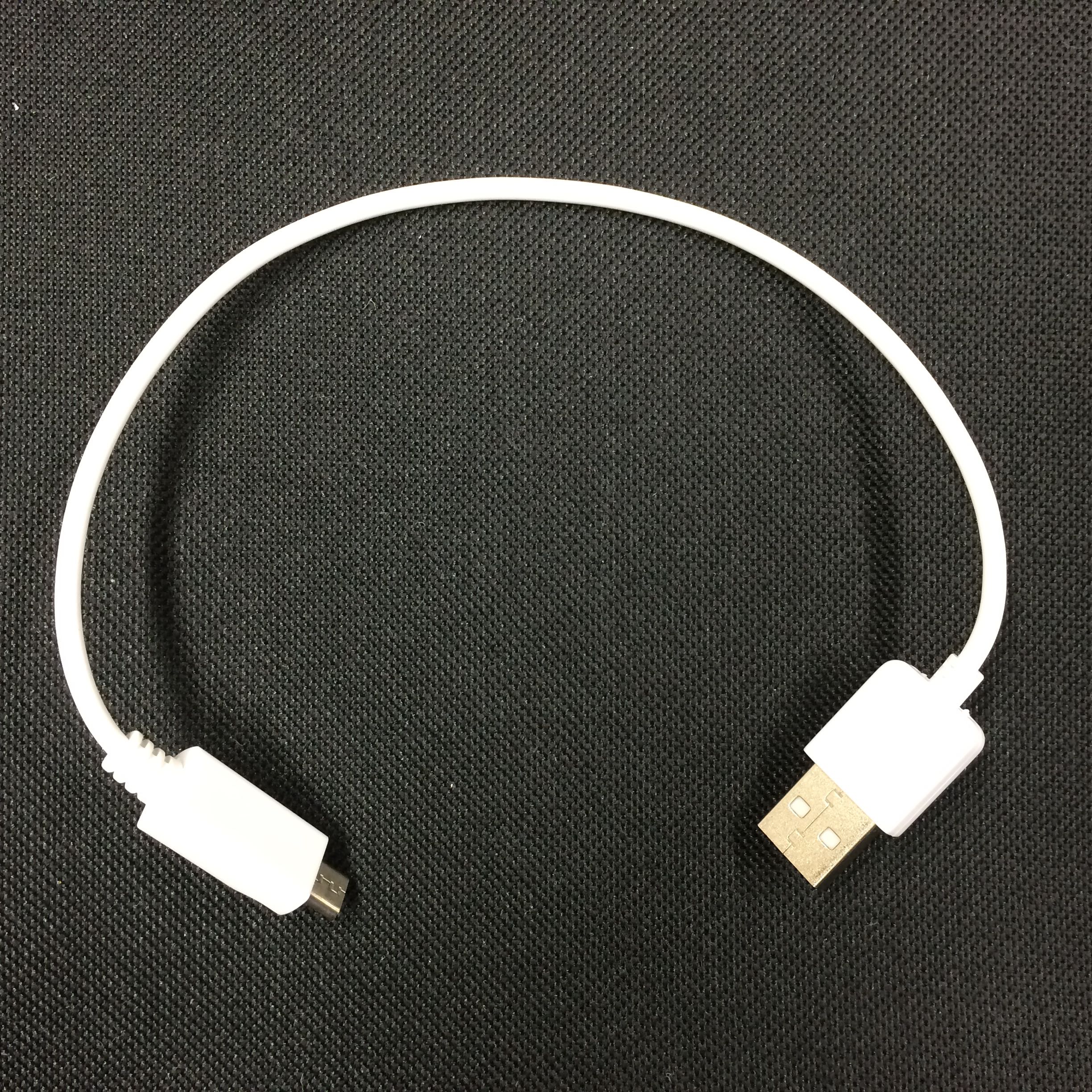

Micro USB Cable ( 150 mm or more , connect between Raspberry Pi and Arduino) 1 piece
(if you use Arduino without Leonardo, you should use USB cable Type-B or adapted cable )

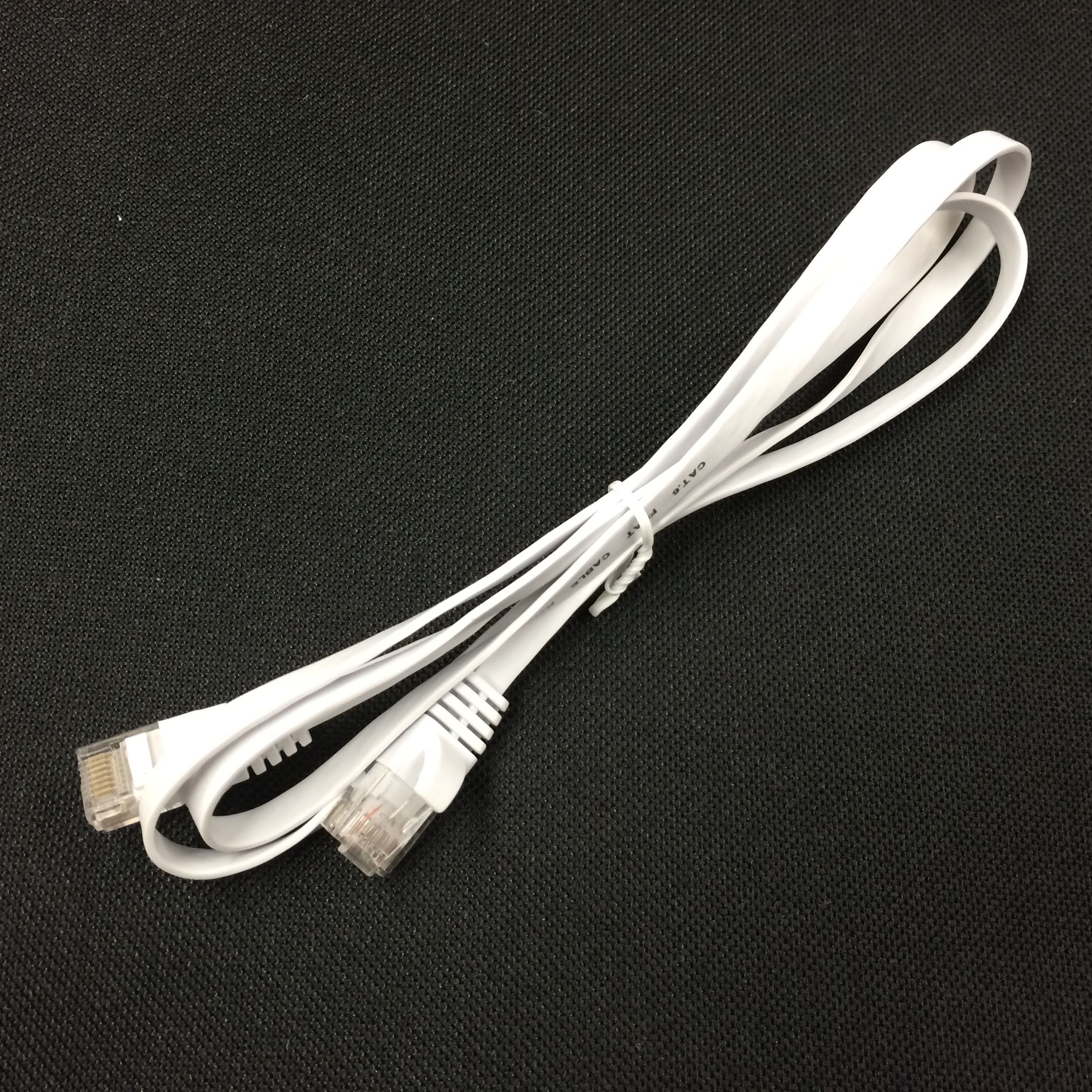

LAN cable (100mm or more) 1 piece

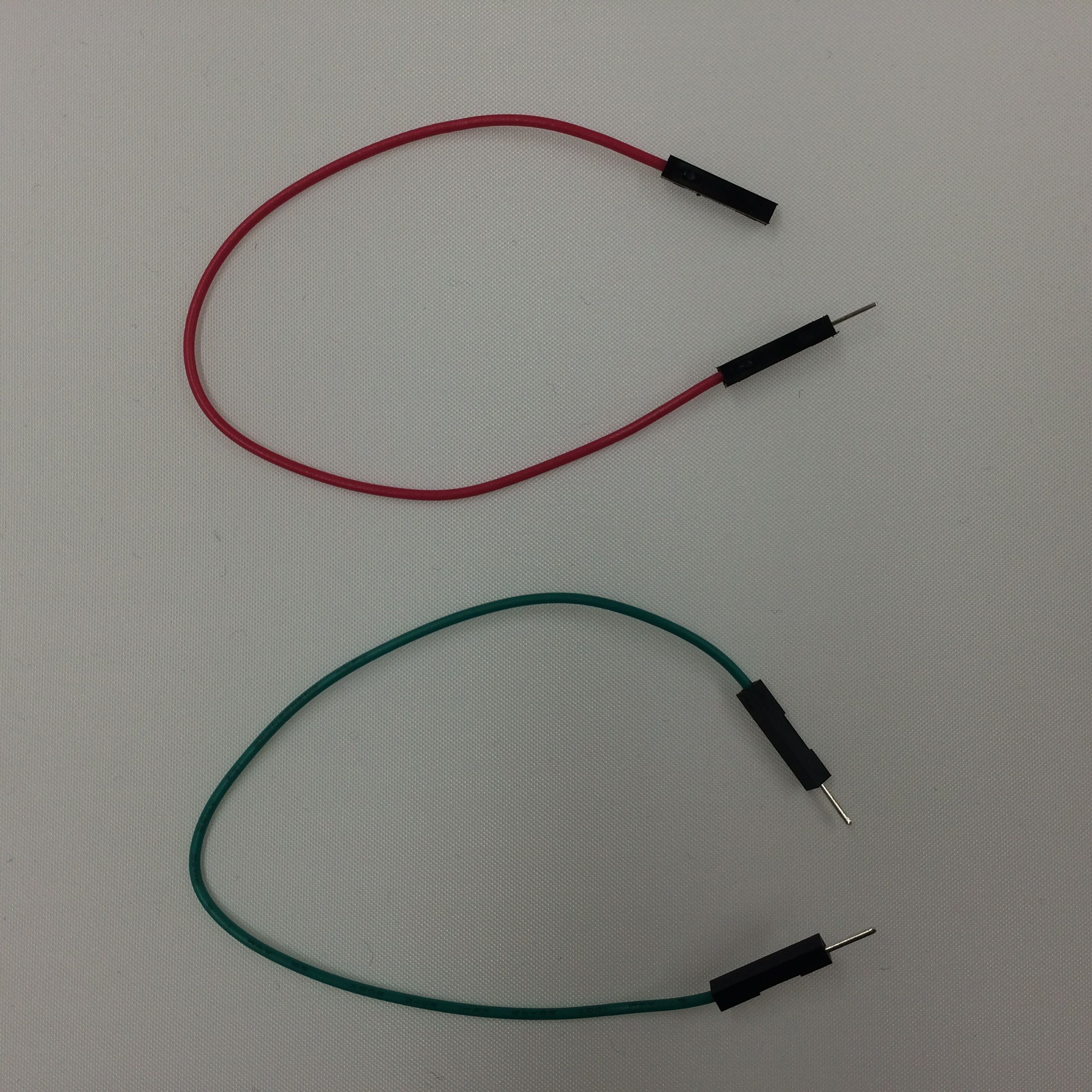

Jumper Wires

You may use them (But we do not test them.)
155mm long jumpers M/M 10 piece (11 piece if you use Arduino without “IOREF” pin) Farnell element14
SparkFun

155mm long jumpers M/F 8 pieces(14 piece if you use Arduino without “IOREF” pin)
Farnell element14
SparkFun
